Contrastive PCA++ (cPCA++) Performs Contrastive PCA++ (cPCA++) to find directions that capture variation enriched in a "foreground" dataset relative to a "background" dataset. This implementation follows the cPCA++ approach which directly solves the generalized eigenvalue problem Rf v = lambda Rb v, where Rf and Rb are the covariance matrices of the foreground and background data, centered using the background mean.

Contrastive PCA++ (cPCA++) Performs Contrastive PCA++ (cPCA++) to find directions that capture variation enriched in a "foreground" dataset relative to a "background" dataset. This implementation follows the cPCA++ approach which directly solves the generalized eigenvalue problem Rf v = lambda Rb v, where Rf and Rb are the covariance matrices of the foreground and background data, centered using the background mean.

Usage

cPCAplus(
  X_f,
  X_b,
  ncomp = NULL,
  center_background = TRUE,
  lambda = 0,
  method = c("geigen", "primme", "sdiag", "corpcor"),
  strategy = c("auto", "feature", "sample"),
  verbose = getOption("multivarious.verbose", TRUE),
  sample_rank = NULL,
  sample_oversample = 10L,
  ...
)

Arguments

X_f

A numeric matrix representing the foreground dataset (samples x features).

X_b

A numeric matrix representing the background dataset (samples x features). X_f and X_b must have the same number of features (columns).

ncomp

Integer. The number of contrastive components to compute. Defaults to min(ncol(X_f), nrow(X_f), nrow(X_b)), and may be further capped by the effective background rank (especially under the sample-space strategy).

center_background

Logical. If TRUE (default), both X_f and X_b are centered using the column means of X_b. If FALSE, it assumes data is already appropriately centered.

lambda

Shrinkage intensity for covariance estimation (0 <= lambda <= 1). Defaults to 0 (no shrinkage). Uses corpcor::cov.shrink. Can help stabilize results if Rb is ill-conditioned or singular.

method

A character string specifying the primary computation method. Options include:

"geigen" (Default): Use geneig from the geigen package.
"primme": Use geneig with the PRIMME library backend (requires special geigen build).
"sdiag": Use geneig with a spectral decomposition method.
"corpcor": Use a corpcor-based whitening approach followed by standard PCA.

strategy

Controls the GEVD approach when method is not "corpcor". Options include:

"auto" (Default): Chooses based on dimensions (feature vs. sample space).
"feature": Forces direct computation via p x p covariance matrices.
"sample": Forces sample-space computation via SVD and a smaller GEVD (efficient for large p).

verbose

Logical; if TRUE (default), prints brief status messages about strategy selection and defaults. Set to FALSE to silence these messages.

sample_rank

Optional integer controlling the background subspace rank used in the sample-space strategy. If NULL (default), uses the full background rank min(n_b-1, p). If provided, the solver will target approximately sample_rank + sample_oversample and will be bounded above by the full background rank.

sample_oversample

Integer oversampling margin (default 10) applied when sample_rank is given. Ignored when sample_rank is NULL.

...

Additional arguments passed to the underlying computation functions (geigen::geneig or irlba::irlba based on method and strategy).

Value

A bi_projector-like object with classes c("cPCAplus", "<method_class>", "bi_projector") containing:

v: Loadings matrix (features x ncomp). Interpretation depends on method (see Details).
s: Scores matrix (samples_f x ncomp).
sdev: Vector (length ncomp). Standard deviations (sqrt of generalized eigenvalues for geigen methods, PCA std devs for corpcor).
values: Vector (length ncomp). Generalized eigenvalues (for geigen methods) or PCA eigenvalues (for corpcor).
strategy: The strategy used ("feature" or "sample") if method was not "corpcor".
preproc: The initialized preprocessor object used.
method: The computation method used.
ncomp: The number of components computed.
nfeatures: The number of features.

Details

Preprocessing: Following the cPCA++ paper, if center_background = TRUE, both X_f and X_b are centered by subtracting the column means calculated only from the background data X_b. This is crucial for isolating variance specific to X_f.

Core Algorithm (methods "geigen", "primme", "sdiag", strategy="feature"):

Center X_f and X_b using the mean of X_b.
Compute potentially shrunk \(p \times p\) covariance matrices Rf (from centered X_f) and Rb (from centered X_b) using corpcor::cov.shrink.
Solve the generalized eigenvalue problem Rf v = lambda Rb v for the top ncomp eigenvectors v using geigen::geneig. These eigenvectors are the contrastive principal components (loadings).
Compute scores by projecting the centered foreground data onto the eigenvectors: S = X_f_centered %*% v.

Core Algorithm (Large-D / Sample Space Strategy, strategy="sample"): When \(p \gg n\), forming \(p \times p\) matrices Rf and Rb is infeasible. The "sample" strategy follows cPCA++ §3.2:

Center X_f and X_b using the mean of X_b.
Compute the SVD of centered \(X_b = Ub Sb Vb^T\) (using irlba for efficiency).
Project centered X_f into the background's principal subspace: Zf = X_f_centered %*% Vb.
Form small \(r \times r\) matrices: Rf_small = cov(Zf) and Rb_small = (1/(n_b-1)) * Sb^2.
Solve the small \(r \times r\) GEVD: Rf_small w = lambda Rb_small w using geigen::geneig.
Lift eigenvectors back to feature space: v = Vb %*% w.
Compute scores: S = X_f_centered %*% v.

Alternative Algorithm (method "corpcor"):

Center X_f and X_b using the mean of X_b.
Compute Rb and its inverse square root Rb_inv_sqrt.
Whiten the foreground data: X_f_whitened = X_f_centered %*% Rb_inv_sqrt.
Perform standard PCA (stats::prcomp) on X_f_whitened.
The returned v and s are the loadings and scores in the whitened space. The loadings are not the generalized eigenvectors v. A specific class corpcor_pca is added to signal this.

References

Salloum, R., Kuo, C. C. J. (2022). cPCA++: An efficient method for contrastive feature learning. Pattern Recognition, 124, 108378. (Algorithm 1)

Examples

# Simulate data where foreground has extra variance in first few dimensions
set.seed(123)
n_f <- 100
n_b <- 150
n_features <- 50

# Background: standard normal noise
X_b <- matrix(rnorm(n_b * n_features), nrow=n_b, ncol=n_features)
colnames(X_b) <- paste0("Feat_", 1:n_features)

# Foreground: background noise + extra variance in first 5 features
X_f_signal <- matrix(rnorm(n_f * 5, mean=0, sd=2), nrow=n_f, ncol=5)
X_f_noise <- matrix(rnorm(n_f * (n_features-5)), nrow=n_f, ncol=n_features-5)
X_f <- cbind(X_f_signal, X_f_noise) + matrix(rnorm(n_f * n_features), nrow=n_f, ncol=n_features)
colnames(X_f) <- paste0("Feat_", 1:n_features)
rownames(X_f) <- paste0("SampleF_", 1:n_f)

# Apply cPCA++ (requires geigen and corpcor packages)
# install.packages(c("geigen", "corpcor"))
if (requireNamespace("geigen", quietly = TRUE) && requireNamespace("corpcor", quietly = TRUE)) {
  # Assuming helper constructors like bi_projector are available
  # library(multivarious)

  res_cpca_plus <- cPCAplus(X_f, X_b, ncomp = 5, method = "geigen")

  # Scores for the foreground data (samples x components)
  print(head(res_cpca_plus$s))

  # Loadings (contrastive directions) (features x components)
  print(head(res_cpca_plus$v))
}
#> Using feature-space strategy...
#>                 cPC1       cPC2       cPC3       cPC4       cPC5
#> SampleF_1  0.6973216 -0.9298861 -2.4890872 -1.1068083  0.7499051
#> SampleF_2  5.3814450  3.7903387 -1.0576106 -1.5806685 -0.6569618
#> SampleF_3  1.0732526  0.7042730 -2.1782781  0.2180881  3.7225401
#> SampleF_4 -2.4616309 -3.5851637  3.9806244 -0.3335771 -0.1837763
#> SampleF_5  2.2755087  0.8559051 -0.1064592 -0.3198966  2.4177053
#> SampleF_6 -2.2642836  1.9850255  1.5783660 -0.9690632  1.3477944
#>               cPC1        cPC2        cPC3        cPC4       cPC5
#> Feat_1  0.12938667  0.35443654 -0.27401589  0.23486767 -0.1665203
#> Feat_2  0.28086477  0.01166486 -0.16767050  0.28665253  0.2750788
#> Feat_3  0.32662862  0.10800109  0.24508903  0.06522056 -0.1403823
#> Feat_4  0.28416270 -0.01924305 -0.01876914 -0.16614791  0.1280966
#> Feat_5 -0.05633953  0.15857353  0.42986961  0.03909660 -0.1655489
#> Feat_6  0.06099437  0.09724319  0.02361012 -0.01815817 -0.1194691

if (FALSE) { # \dontrun{
# Plot example (not run to avoid graphics device issues)
if (requireNamespace("geigen", quietly = TRUE) && requireNamespace("corpcor", quietly = TRUE)) {
  set.seed(123)
  X_b <- matrix(rnorm(150 * 50), nrow=150, ncol=50)
  X_f <- cbind(matrix(rnorm(100*5, sd=2), 100, 5), matrix(rnorm(100*45), 100, 45))
  res <- cPCAplus(X_f, X_b, ncomp = 5, method = "geigen")

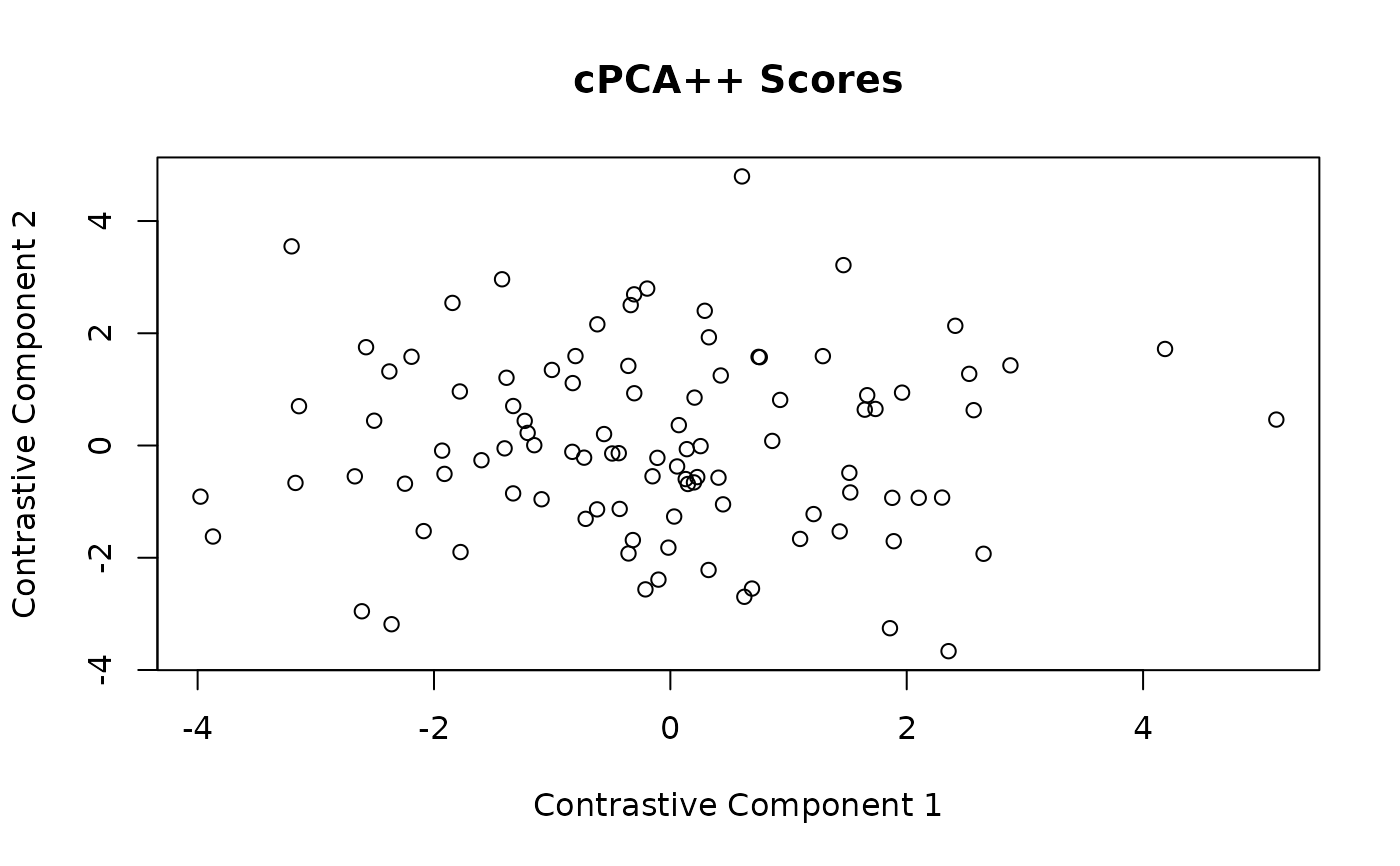

  plot(res$s[, 1], res$s[, 2],
       xlab = "Contrastive Component 1", ylab = "Contrastive Component 2",
       main = "cPCA++ Scores")
}
} # }
