Atlas Visualization with Optimal Colours

Every atlas in neuroatlas can be visualised with a single call to plot(). Behind the scenes, plot.atlas() renders coloured parcels as volumetric slices using neuroim2’s plot_montage() and plot_ortho(), with colours assigned automatically by the roi_colors system.

library(neuroatlas)

Quick Start

atlas <- get_aseg_atlas()
plot(atlas)

The default view is a multi-slice montage (axial slices) with colours chosen by the rule_hcl algorithm — a fast, deterministic palette that uses network hues and hemisphere luminance differences.

For a three-plane orthogonal view:

plot(atlas, view = "ortho")

Region legends

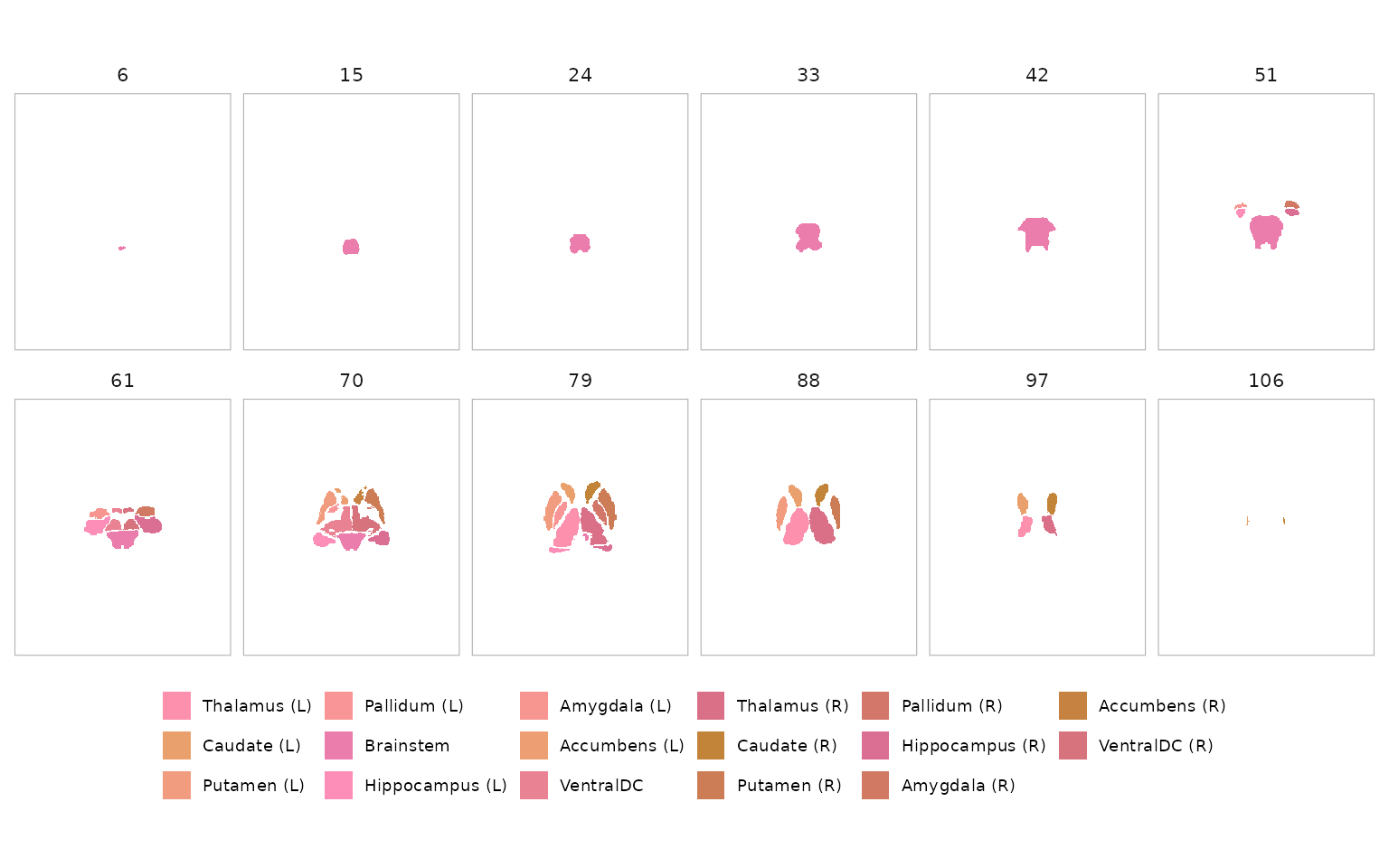

By default no legend is drawn — for a 400-region cortical parcellation it would be useless. But for small atlases (subcortical, MTL, a handful of ROIs) a colour legend is genuinely helpful. Pass legend = TRUE to add one below a montage; labels appearing in both hemispheres are disambiguated with (L)/(R):

plot(atlas, legend = TRUE)   # ASEG has 17 regions

The legend is capped by legend_max (default 30). A request above that limit emits a warning and omits the legend; raise legend_max to override. Legends are drawn for montage views, not orthogonal views whose planes contain different subsets of regions.

Colour Algorithms

neuroatlas ships four colour algorithms, each suited to different use cases. Pass the method argument to plot() to switch between them.

rule_hcl (default)

Deterministic and fast. Assigns hues per network with anterior-posterior gradients and hemisphere luminance offsets.

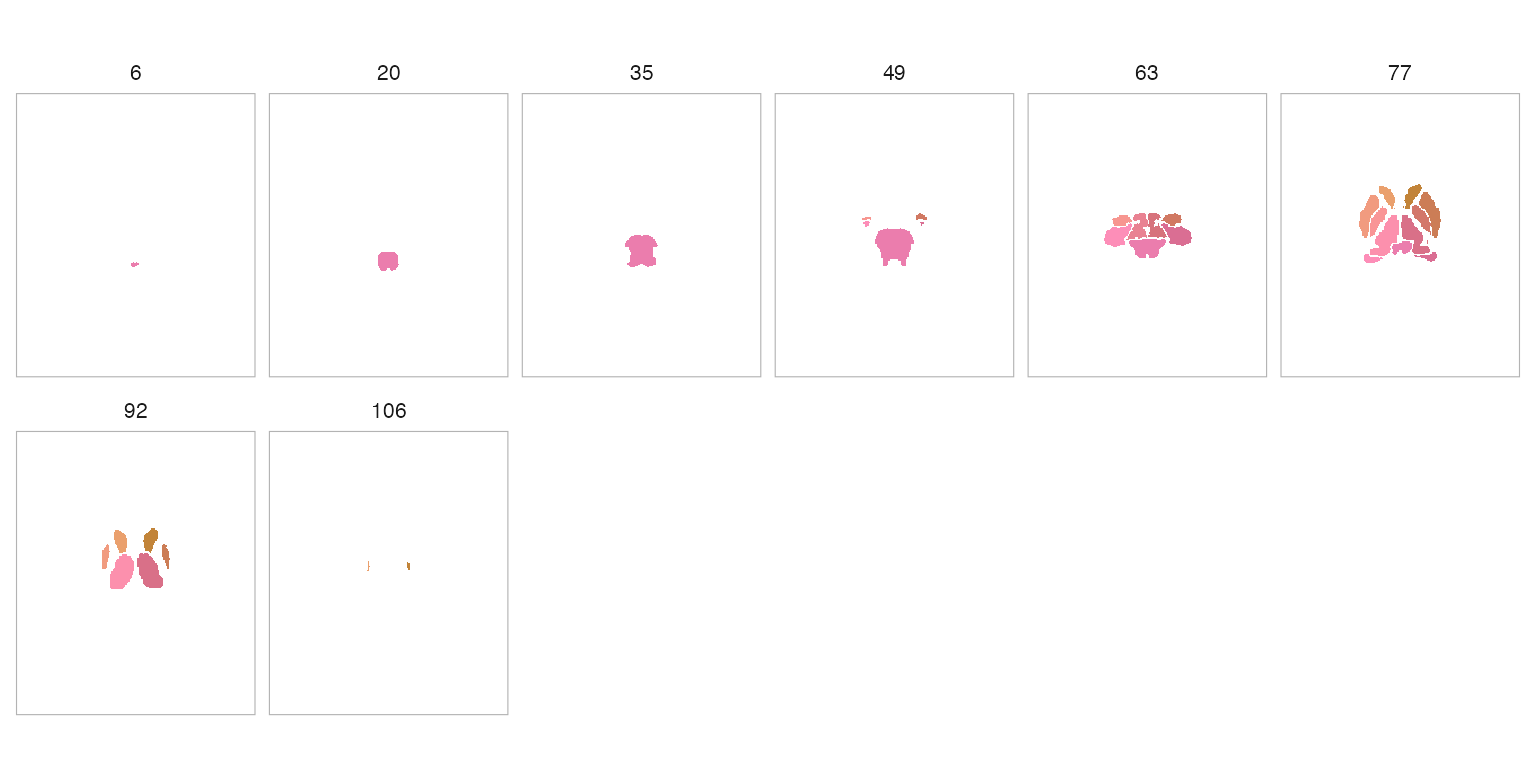

plot(atlas, method = "rule_hcl", nslices = 8)

maximin_view

Optimises perceptual separation between spatially neighbouring ROIs across slice views. Best for publication figures where adjacent parcels must be easily distinguished.

plot(atlas, method = "maximin_view", nslices = 8)

network_harmony

Network-aware: ROIs in the same network share analogous hue families while still maximising local separation. Requires the atlas to have a $network field (e.g. Schaefer atlases).

# Requires a Schaefer atlas with network metadata (network download)
schaefer <- get_schaefer_atlas(parcels = "200", networks = "7")
plot(schaefer, method = "network_harmony", nslices = 8)

embedding

Projects ROI features to 2D (PCA or UMAP) and maps polar angle to hue, yielding globally structured gradients.

plot(atlas, method = "embedding", nslices = 8)

Custom Colours

You can supply your own colours as a named character vector (names are region IDs) or as a tibble from atlas_roi_colors().

Named vector

my_cols <- setNames(rainbow(length(atlas$ids)), atlas$ids)
plot(atlas, colors = my_cols, nslices = 6)

Pre-computed tibble

color_tbl <- atlas_roi_colors(atlas, method = "maximin_view")
head(color_tbl)
#> # A tibble: 6 × 2
#>      id color
#>   <int> <chr>
#> 1    10 #14E2C6
#> 2    11 #EEB8C7
#> 3    12 #A8C3E3
#> 4    13 #F6BA4F
#> 5    16 #81C2FF
#> 6    17 #87CCBE
plot(atlas, colors = color_tbl, nslices = 6)

Programmatic Colour Access

The atlas_roi_colors() function is the bridge between atlas objects and the roi_colors_*() family. It extracts ROI centroids, builds a metadata tibble, and dispatches to the requested algorithm.

cols <- atlas_roi_colors(atlas, method = "rule_hcl")
cols
#> # A tibble: 17 × 2
#>       id color
#>    <int> <chr>
#>  1    10 #FC90AD
#>  2    11 #EAA06D
#>  3    12 #F19B7F
#>  4    13 #F99596
#>  5    16 #EB7DAD
#>  6    17 #FD8EB8
#>  7    18 #F79690
#>  8    26 #ED9E73
#>  9    28 #E98292
#> 10    49 #D97088
#> 11    50 #C28439
#> 12    51 #CC7D56
#> 13    52 #D3776A
#> 14    53 #DA6E93
#> 15    54 #D17963
#> 16    58 #C58241
#> 17    60 #D7737C

This tibble can be joined with other atlas metadata for downstream analyses.

Controlling Slice Count

Use nslices to control how many slices appear in the montage:

plot(atlas, nslices = 4)

Surface Figures with Layout Control

For cortical surface atlases, plot_brain() gives you direct control over the static figure layout. You can move the colorbar, add figure titles, and replace the default facet labels without assembling the figure by hand afterward.

surf_atl <- schaefer_surf(
  parcels = 200,
  networks = 7,
  space = "fsaverage6",
  surf = "inflated"
)

surf_vals <- seq(-2, 2, length.out = length(surf_atl$ids))

plot_brain(
  surf_atl,
  vals = surf_vals,
  views = c("lateral", "medial"),
  interactive = FALSE,
  style = "ggseg_like",
  colorbar = "bottom",
  colorbar_title = "Standardized effect",
  title = "Parcel-level summary on fsaverage6",
  subtitle = "Bottom colorbar plus concise panel labels",
  panel_labels = c(
    "Left Lateral" = "LH lateral",
    "Right Lateral" = "RH lateral",
    "Left Medial" = "LH medial",
    "Right Medial" = "RH medial"
  )
)

Because this example mixes lateral and medial views, each short label retains both hemisphere and view. For a dedicated guide to multi-panel layout, shared legends, and the default hemisphere-orientation convention, see vignette("surface-panels", package = "neuroatlas").

Which entry point should you use?

Use plot() for volume atlases and plot_brain() for surface atlases. The older ggseg helpers are migration paths: ggseg_schaefer() is deprecated and plot_glasser() has been removed with a stop-level deprecation. New code should load a surface atlas with schaefer_surf() or glasser_surf() and pass it to plot_brain().
