Surface Templates: Geometry vs. Data

Why this vignette

Surface work in neuroatlas uses two key pieces:

Geometry (mesh and topology): stored as a neurosurf::SurfaceGeometry.
Per-vertex data (numbers or labels): stored as the data slot of a neurosurf::NeuroSurface (one value per vertex).

This vignette shows how to fetch surface geometry from TemplateFlow, what each helper returns, and how to attach data when you need a full NeuroSurface.

Quick reference

get_surface_template() → character path to a .surf.gii file (one hemi). No mesh loaded yet.
load_surface_template() → SurfaceGeometry (mesh + graph + hemi), still no per-vertex data. Can return L/R or both as a list.
Atlas helpers (e.g., schaefer_surf(), glasser_surf()) → LabeledNeuroSurface with integer labels in data and a mesh in geometry.
Packaged fsaverage6 meshes live in data/fsaverage.rda and are used automatically by schaefer_surf(..., space = "fsaverage6").

Fetching geometry only

Note: load_surface_template() requires TemplateFlow. The fsaverage template may have limited availability for surface files. Check tflow_spaces() for available templates.

# fsaverage6 pial surface, left hemi (requires TemplateFlow)
geom_l <- load_surface_template(
  template_id = "fsaverage",
  surface_type = "pial",
  hemi = "L",
  density = "41k",
  resolution = "06"
)
geom_l

geom_l is a SurfaceGeometry with:

mesh: rgl::mesh3d containing vertices (vb) and faces (it).
graph: igraph adjacency of the mesh.
hemi: "left" or "right".

No per-vertex values are present yet.

Both hemispheres at once

# fsLR is more commonly available in TemplateFlow than fsaverage
geoms <- load_surface_template(
  "fsLR", "inflated", hemi = "both", density = "32k"
)
str(geoms, max.level = 1)

Returns a named list with L and R SurfaceGeometry objects if the template is available in TemplateFlow.

Attaching per-vertex data

To get a full NeuroSurface, supply data explicitly:

geom_l <- load_surface_template("fsaverage", "pial", hemi = "L",
                                density = "41k", resolution = "06")

# Example: all zeros (same length as vertices)
vals <- rep(0, length(neurosurf::nodes(geom_l)))

surf_l <- neurosurf::NeuroSurface(
  geometry = geom_l,
  indices  = neurosurf::nodes(geom_l),
  data     = vals
)

surf_l@data now holds one value per vertex; you can replace vals with cortical thickness, activation, etc.

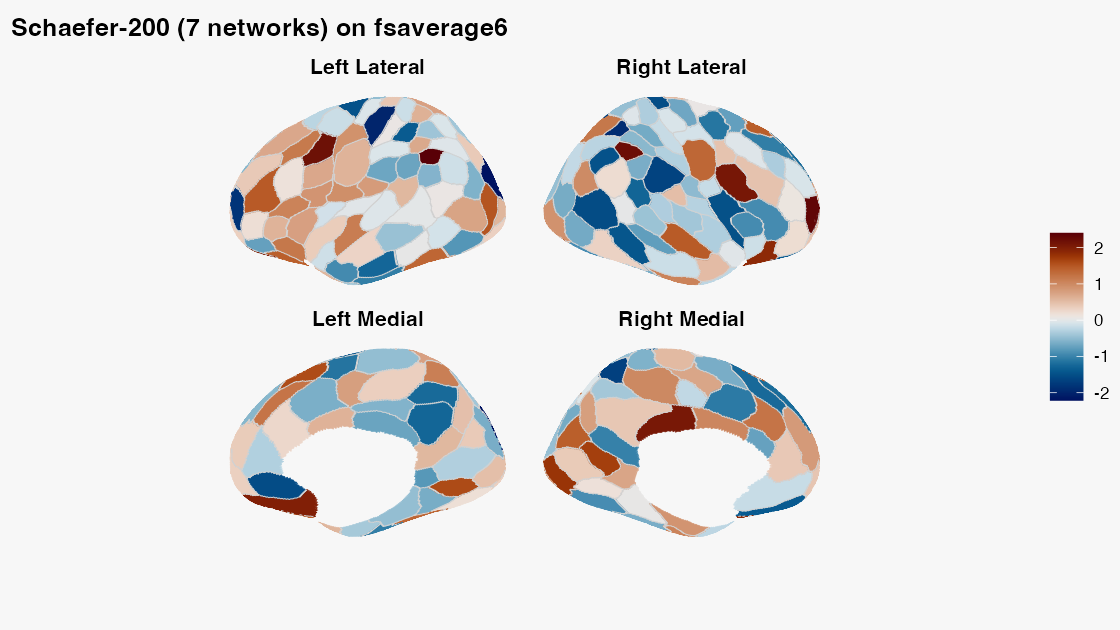

Getting labeled surfaces (parcellations)

If you want labels already attached, use the atlas helpers; they combine geometry with per-vertex label IDs:

atl <- schaefer_surf(parcels = 200, networks = 7,
                     space = "fsaverage6", surf = "inflated")

class(atl$lh_atlas)
#> "LabeledNeuroSurface" "NeuroSurface" ...

head(slot(atl$lh_atlas, "data"))
# integer labels per vertex

slot(atl$lh_atlas, "data") holds parcel IDs; metadata in atl$labels maps those IDs to names.

When TemplateFlow is required

Any call that specifies template_id/space not packaged (e.g., fsaverage, fsaverage5/6, fsLR) needs TemplateFlow plus network access on first use.
fsaverage6 geometry is bundled; set space = "fsaverage6" in schaefer_surf() to avoid TemplateFlow.

Common patterns

Get a mesh path only (no R object): get_surface_template(...).
Get a mesh object: load_surface_template(...).
Get mesh + labels: schaefer_surf() / glasser_surf().
Add your own values: wrap the geometry with NeuroSurface(...).

Sanity check: surface renders

We generate a small snapshot to prove the geometry loads and is displayable. This chunk only runs when TemplateFlow is available; the PNG is written to figures/ and then shown below.

dir.create("figures", showWarnings = FALSE)
png_path <- file.path("figures", "fslr32k_inflated_L.png")
geom_l <- load_surface_template(
  "fsLR",
  "inflated",
  hemi = "L",
  density = "32k"
)
neurosurf::snapshot_surface(geom_l, file = png_path)
png_path

If the image renders, the template fetched correctly.

Template roster & snapshots

Below are the surface templates we currently target in code/tests. Densities are TemplateFlow defaults; surface types are those exposed by get_surface_template() (and used by our atlas helpers).

template_id	density/res	surface types	packaged?
fsaverage	164k	white, pial, inflated, midthickness, sphere	TF
fsaverage6	41k (`res-06`)	white, pial, inflated	yes (bundled)
fsaverage5	10k (`res-05`)	white, pial, inflated	TF
fsLR	32k	white, pial, inflated, midthickness, sphere	TF

Batch snapshot script (run locally)

To create a thumbnail per template/hemisphere/type for quick QA:

templates <- list(
  list(id = "fsaverage",  den = "164k", res = NULL, types = c("pial", "inflated")),
  list(id = "fsaverage6", den = "41k",  res = "06",  types = c("pial", "inflated")),
  list(id = "fsaverage5", den = "10k",  res = "05",  types = c("pial")),
  list(id = "fsLR",       den = "32k",  res = NULL,  types = c("pial", "inflated"))
)

for (tpl in templates) {
  for (stype in tpl$types) {
    geom_l <- load_surface_template(
      template_id = tpl$id,
      surface_type = stype,
      hemi = "L",
      density = tpl$den,
      resolution = tpl$res
    )
    fname <- sprintf("%s_%s_L.png", tpl$id, stype)
    neurosurf::snapshot_surface(geom_l, file = fname)
  }
}

Enable and run locally to generate PNGs you can embed or eyeball to verify each template is present and renderable.

That’s it—use geometry-only helpers when you want maximal control, and atlas helpers when you want labeled surfaces out of the box.
