Neuroimaging Atlases and Parcellations • neuroatlas

neuroatlas provides a unified interface for working with neuroimaging atlases and parcellations in R. Whether you’re conducting ROI-based analyses, visualizing brain data, or integrating different parcellation schemes, neuroatlas streamlines these tasks with consistent, user-friendly functions.

Features

Many built-in atlases: Schaefer (100-1000 parcels), Brainnetome (246 regions), Glasser (360 regions), HCPex (426 regions), Harvard-Oxford, Julich-Brain, FreeSurfer ASEG, harmonized TemplateFlow/AtlasPack subcortical atlases, Olsen MTL, and probabilistic visual-cortex atlases (Wang 2015, visfAtlas, cytoarchitectonic V1-V5)
Surface & volume: Work with both volumetric and surface-based parcellations through one consistent interface
Atlas discovery: Enumerate built-ins with list_atlases() and load any of them by name with get_atlas()
ROI analysis: Extract and summarise regions with get_roi(), map_atlas(), reduce_atlas(), and batch_reduce()
Atlas operations: Combine and reshape parcellations with merge_atlases(), filter_atlas(), dilate_atlas(), atlas_overlap(), and resampling across spaces/resolutions
Spatial queries: Look up parcels by world, voxel, or MNI coordinate with query_point(), query_coord(), and query_vox()
Network & graph tools: atlas_connectivity(), atlas_graph() / as_igraph(), atlas_hierarchy(), and spin_test() spatial null models
TemplateFlow integration: Access standardized templates through the pure-R templateflow backend
Visualization: Publication-quality surface figures with plot_brain() / plot_brain_grid(), perceptually-optimised ROI palettes, the ggseg ecosystem, and an interactive cluster_explorer() Shiny app
Metadata: Atlases and loaded templates carry identity, spatial geometry, citations, source artifacts, and processing history (atlas_metadata(), template_metadata()).

Installation

You can install the development version from GitHub:

# install.packages("pak")
pak::pak("bbuchsbaum/neuroatlas")

TemplateFlow Setup

TemplateFlow access uses the imported pure-R templateflow package. No Python or reticulate setup is required:

neuroatlas::tflow_spaces(pattern = "^MNI")
neuroatlas::show_templateflow_cache_path()

Quick Start

library(neuroatlas)

# Get a Schaefer atlas (200 parcels, 7 networks)
schaefer <- get_schaefer_atlas(parcels = 200, networks = 7)
print(schaefer)

# Extract a specific ROI by label (e.g. the first visual parcel)
roi <- get_roi(schaefer, "Vis_1")

# Get Glasser atlas
glasser <- get_glasser_atlas()

# Access templates via TemplateFlow
mni_brain <- get_template("MNI152NLin2009cAsym", variant = "brain")

Discovering and loading atlases

# See every built-in atlas
list_atlases()

# Load any of them by id (with loader-specific arguments)
schaefer <- get_atlas("schaefer2018", parcels = "100", networks = "7")

HCPex: cortex and subcortex

HCPex adds 66 subcortical regions to the 360 cortical regions of HCP-MMP1.0. Load the upstream v1.1 volume at 1 or 2 mm:

hcp <- get_atlas("hcpex", resolution = 2)
get_roi(hcp, label = "V1_L")
subcortex <- filter_atlas(hcp, division == "subcortical")
roi_metadata(subcortex)  # Abbreviations, full names, hemisphere, and colors
atlas_citations(hcp)

The source declares MNI152NLin2009cAsym template space. HCPex uses its own region ordering; reorder matrices from original HCP-MMP1.0 order before mapping them to this atlas. Downloads are cached and checked against pinned checksums. The upstream atlas data are licensed under GPL-3.0.

Identify and cite a resource

aseg <- get_aseg_atlas()
atlas_metadata(aseg)       # Identity, current geometry, source, and modifications
atlas_citations(aseg)      # R bibliography entries, ready for toBibtex()
atlas_artifacts(aseg)      # Original files, license information, and checksums
atlas_history(aseg)        # Recorded operations and their parameters

Metadata stay attached when objects are saved. Source-file geometry and current object geometry are recorded separately, and unknown provenance is explicit. See Identify, cite, and trace an atlas.

Palette demos

neuroatlas includes perceptually-optimised palettes for atlas ROIs. For instance, you can generate a slice-aware palette for the Schaefer 200×7 atlas and feed it directly into plot_brain():

library(neuroatlas)

schaefer <- get_schaefer_atlas(parcels = 200, networks = 7)

colors <- atlas_roi_colors(
  schaefer,
  method = "maximin_view",
  seed = 1
)

schaefer_surface <- schaefer_surf(parcels = 200, networks = 7)

plot_brain(
  schaefer_surface,
  colors = colors,
  interactive = FALSE,
  style = "ggseg_like"
)

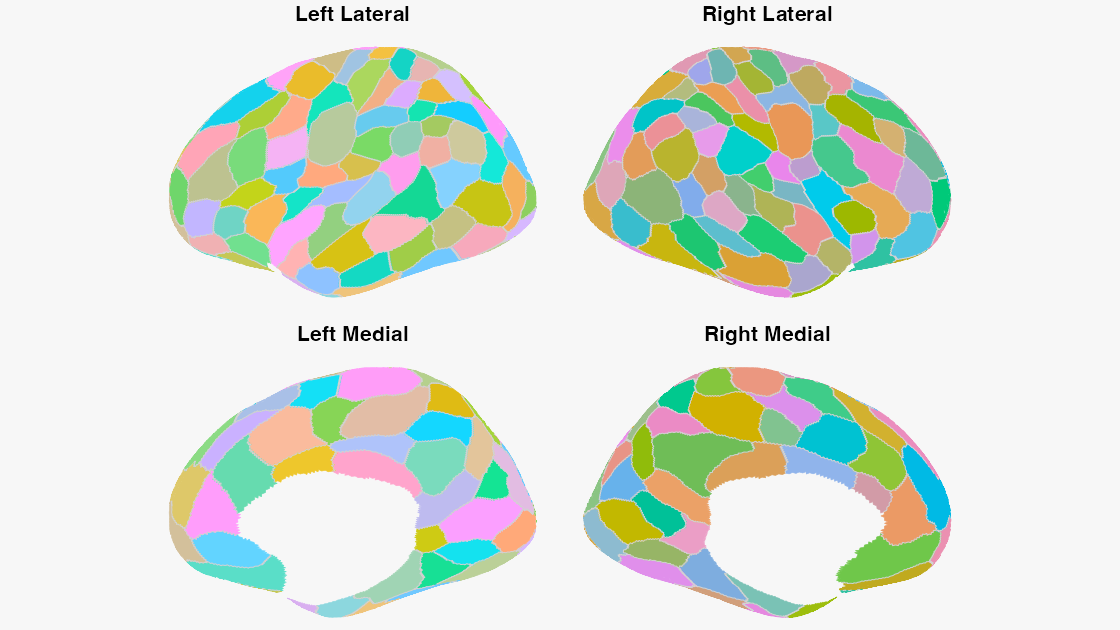

Schaefer-200 (7-network) parcellation on the fsaverage6 surface with a perceptually-optimised maximin colour palette; lateral and medial views of both hemispheres.

Available Atlases

Atlas	Function	Description
Schaefer	`get_schaefer_atlas()`	Cortical parcellations (100-1000 regions, 7 or 17 networks); surface via `get_schaefer_surfatlas()`
Brainnetome	`get_brainnetome_atlas()`	246-region connectional atlas with Yeo network and cytoarchitectonic metadata
Glasser	`get_glasser_atlas()`	360-region multi-modal cortical parcellation (surface via `glasser_surf()`)
HCPex	`get_hcpex_atlas()`	360 cortical and 66 subcortical regions, native 1/2 mm volumes in MNI152NLin2009cAsym
Harvard-Oxford	`get_harvard_oxford_atlas()`	Cortical/subcortical structural atlases via TemplateFlow or FSL
Julich-Brain	`get_julich_brain_atlas()`	FSL Julich-Brain cytoarchitectonic atlas
ASEG	`get_aseg_atlas()`	FreeSurfer subcortical segmentation
Subcortical	`get_subcortical_atlas()`	Harmonized thalamus, cerebellum, and subcortex atlases (AtlasPack/TemplateFlow)
Olsen MTL	`get_olsen_mtl()`	Medial temporal lobe atlas with hippocampal subfields
Wang (2015)	`get_wang_atlas()`	Probabilistic visual topography on `fsaverage` (25 areas/hemi); probability volumes via `get_wang_prob_atlas()`
visfAtlas	`get_visfatlas()`	Probabilistic functional atlas of occipito-temporal visual cortex (33 regions)
Visual V1-V5	`get_visual_atlas()`	Cytoarchitectonic early visual areas extracted from Julich-Brain
