Plot method for FPGW — plot.fpgw • manifoldalign

Plot method for FPGW

Usage

# S3 method for class 'fpgw'
plot(x, which = 1, pair = 1, ...)

Arguments

x: An fpgw object

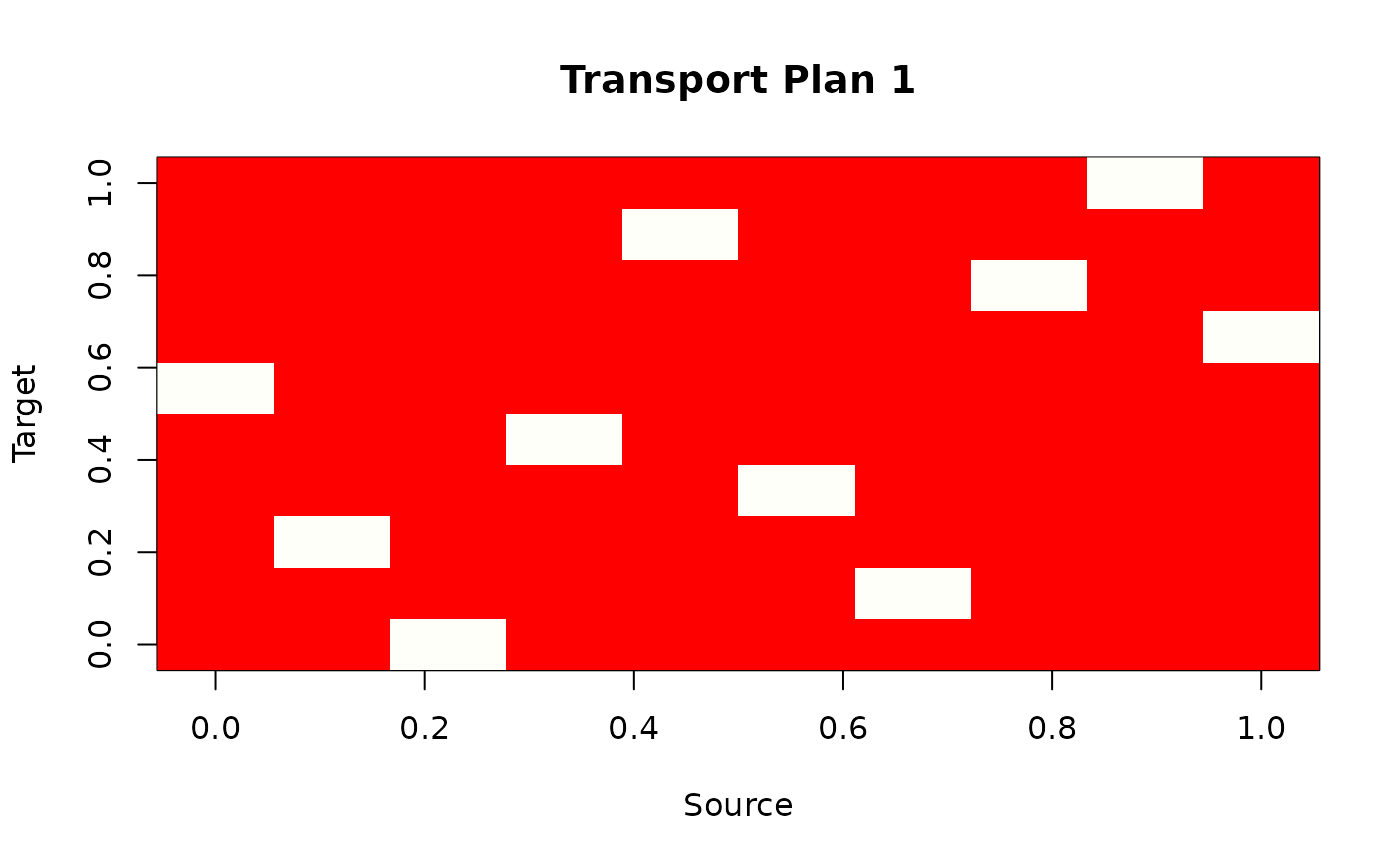

which: Which plot to create (1: distance matrix, 2: transport plan)
pair: For transport plan, which pair to plot (default: 1)
...: Additional arguments passed to plotting functions

Value

NULL, invisibly. Called for its side effect of producing a plot.

Examples

# \donttest{
set.seed(1)
X1 <- matrix(rnorm(30), 10, 3)
X2 <- matrix(rnorm(30), 10, 3)
library(multidesign)
md1 <- multidesign(X1, data.frame(id = 1:10))
md2 <- multidesign(X2, data.frame(id = 1:10))
hd <- hyperdesign(list(d1 = md1, d2 = md2))
res <- fpgw(hd)
plot(res, which = 1)

plot(res, which = 2, pair = 1)

# }
