Model Evaluation and Inference

Source: vignettes/model_evaluation.Rmd
model_evaluation.Rmd

Why evaluate a multiblock model?

Exploratory score plots are useful, but they are not the whole story. In muscal, the main evaluation questions are usually:

  • Are the leading components stable under resampling?
  • Is the shared structure stronger than a row-shuffled null?
  • How well does the fitted model reconstruct or predict held-out data?

This vignette shows the package-level tools for answering those questions. The same workflow applies across methods that expose a standard fit contract.

Load the package

What does the evaluation API cover?

muscal exposes one generic resampling helper and one generic CV helper:

metric_registry()
#> # A tibble: 15 × 4
#>    task                metric                 maximize description
#>    <chr>               <chr>                  <lgl>    <chr>
#>  1 reconstruction      mse                    FALSE    Mean squared reconstruct…
#>  2 reconstruction      rmse                   FALSE    Root mean squared recons…
#>  3 reconstruction      r2                     TRUE     Global reconstruction R-…
#>  4 reconstruction      mae                    FALSE    Mean absolute reconstruc…
#>  5 response_prediction mse                    FALSE    Mean squared response pr…
#>  6 response_prediction rmse                   FALSE    Root mean squared respon…
#>  7 response_prediction r2                     TRUE     Global response predicti…
#>  8 response_prediction mae                    FALSE    Mean absolute response p…
#>  9 response_prediction mean_correlation       TRUE     Mean row-wise Pearson co…
#> 10 response_prediction mean_cosine_similarity TRUE     Mean row-wise cosine sim…
#> 11 retrieval_alignment mean_top1_similarity   TRUE     Mean cosine similarity o…
#> 12 retrieval_alignment mean_topk_similarity   TRUE     Mean cosine similarity a…
#> 13 retrieval_alignment oracle_gap             FALSE    Average gap between the …
#> 14 retrieval_alignment recall_at_k            TRUE     Fraction of queries whos…
#> 15 retrieval_alignment mrr                    TRUE     Mean reciprocal rank of …
default_metrics("reconstruction")
#> [1] "mse"  "rmse" "r2"
default_metrics("response_prediction")
#> [1] "mse"                    "rmse"                   "r2"
#> [4] "mean_cosine_similarity"

The registered task families are:

  • reconstruction for same-row multiblock models such as mfa()
  • response_prediction for anchored models that predict a reference block
  • retrieval_alignment for row-alignment style retrieval tasks

Bootstrap and permutation inference for MFA

We start with a standard same-row MFA problem.

sim <- synthetic_multiblock(
  S = 3, n = 48,
  p = c(12, 10, 8),
  r = 2, sigma = 0.25, seed = 7
)

fit_mfa <- mfa(sim$data_list, ncomp = 2)

stopifnot(all(is.finite(scores(fit_mfa))))
stopifnot(length(fit_mfa$sdev) == 2)

Bootstrap component stability

Bootstrap inference is useful when you want interval estimates for the leading component strengths.

boot_mfa <- infer_muscal(
  fit_mfa,
  method = "bootstrap",
  statistic = "sdev",
  nrep = 8,
  seed = 101
)

boot_mfa$summary
#> # A tibble: 2 × 7
#>   component label observed  mean     sd lower upper
#>       <int> <chr>    <dbl> <dbl>  <dbl> <dbl> <dbl>
#> 1         1 comp1     1.24  1.33 0.0866  1.21  1.45
#> 2         2 comp2     1.15  1.18 0.0523  1.10  1.26
stopifnot(all(is.finite(boot_mfa$summary$mean)))
stopifnot(all(boot_mfa$summary$upper >= boot_mfa$summary$lower))

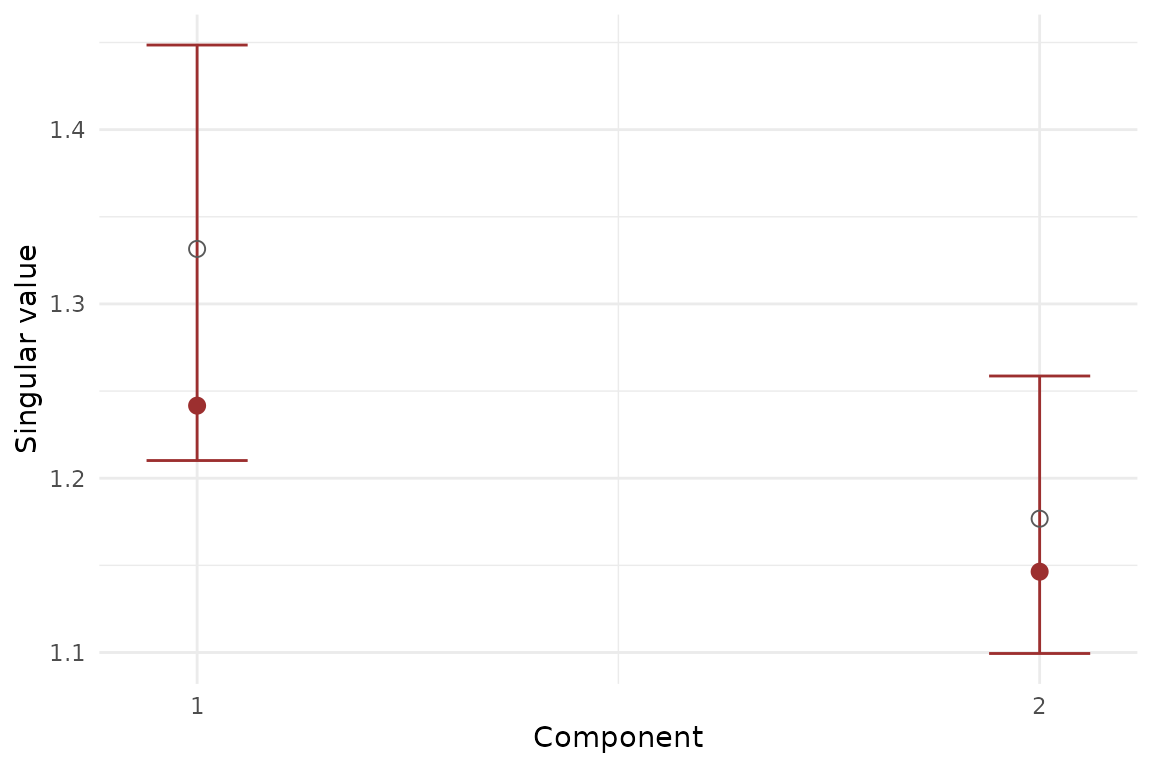

Bootstrap summary for MFA component strengths. Error bars show percentile intervals over resampled refits.

Bootstrap summary for MFA component strengths. Error bars show percentile intervals over resampled refits.

Permutation test for shared signal

Permutation inference asks whether the observed leading components are stronger than what you would expect after breaking row-wise alignment across blocks.

perm_mfa <- infer_muscal(
  fit_mfa,
  method = "permutation",
  statistic = "sdev",
  nrep = 19,
  seed = 202
)

perm_mfa$component_results
#> # A tibble: 2 × 6
#>   component label observed p_value lower_ci upper_ci
#>       <int> <chr>    <dbl>   <dbl>    <dbl>    <dbl>
#> 1         1 comp1     1.24     0.5     1.19     1.30
#> 2         2 comp2     1.15     0.8     1.12     1.21
stopifnot(all(perm_mfa$component_results$p_value >= 0))
stopifnot(all(perm_mfa$component_results$p_value <= 1))

Reconstruction cross-validation for MFA

For same-row methods, the usual held-out target is reconstruction error.

X_concat <- do.call(cbind, sim$data_list)
md <- multidesign::multidesign(X_concat, data.frame(batch = rep(c("A", "B"), each = 24)))
folds_mfa <- multidesign::cv_rows(
  md,
  rows = list(1:6, 25:30),
  preserve_row_ids = TRUE
)
res_mfa_cv <- cv_muscal(
  folds = folds_mfa,
  fit_fn = function(analysis) {
    Xa <- multidesign::xdata(analysis)
    mfa(
      list(
        X1 = Xa[, 1:12, drop = FALSE],
        X2 = Xa[, 13:22, drop = FALSE],
        X3 = Xa[, 23:30, drop = FALSE]
      ),
      ncomp = 2
    )
  },
  estimate_fn = function(model, assessment) {
    predict(model, multidesign::xdata(assessment), type = "reconstruction")
  },
  truth_fn = function(assessment) multidesign::xdata(assessment),
  metrics = c("mse", "rmse", "r2")
)

res_mfa_cv$scores
#> # A tibble: 2 × 4
#>      mse  rmse      r2 .fold
#>    <dbl> <dbl>   <dbl> <int>
#> 1 0.0591 0.243 -0.0134     1
#> 2 0.0633 0.252 -0.0695     2
stopifnot(all(is.finite(res_mfa_cv$scores$mse)))
stopifnot(all(res_mfa_cv$scores$rmse >= 0))

Response-prediction cross-validation for Anchored MFA

Anchored MFA has a different evaluation target: predicting rows of the reference block Y from auxiliary blocks with incomplete overlap.

fit_anchor <- anchored_mfa(
  Y = Y,
  X = list(X1 = X1, X2 = X2),
  row_index = list(X1 = idx1, X2 = idx2),
  ncomp = 2
)

stopifnot(all(is.finite(scores(fit_anchor))))
stopifnot(setequal(fit_anchor$oos_types, c("response", "scores", "reconstruction")))
d1 <- multidesign::multidesign(X1, data.frame(anchor = idx1, Y[idx1, , drop = FALSE]))
d2 <- multidesign::multidesign(X2, data.frame(anchor = idx2, Y[idx2, , drop = FALSE]))
hd <- multidesign::hyperdesign(list(X1 = d1, X2 = d2), block_names = c("X1", "X2"))

folds_anchor <- multidesign::cv_rows(
  hd,
  rows = list(
    list(X1 = 1:3, X2 = 1:3),
    list(X1 = 4:6, X2 = 4:6)
  ),
  preserve_row_ids = TRUE
)
res_anchor_cv <- cv_muscal(
  folds = folds_anchor,
  fit_fn = function(analysis) {
    X_blocks <- multidesign::xdata(analysis)
    idx_blocks <- lapply(multidesign::design(analysis), function(des) des$anchor)
    anchored_mfa(Y = Y, X = X_blocks, row_index = idx_blocks, ncomp = 2)
  },
  estimate_fn = function(model, assessment) {
    X_blocks <- multidesign::xdata(assessment)
    do.call(rbind, lapply(names(X_blocks), function(block_name) {
      predict(model, X_blocks[[block_name]], block = block_name, type = "response")
    }))
  },
  truth_fn = function(assessment) {
    des_blocks <- multidesign::design(assessment)
    do.call(rbind, lapply(des_blocks, function(des) {
      as.matrix(des[, colnames(Y), drop = FALSE])
    }))
  },
  task = "response_prediction",
  metrics = c("mse", "mean_cosine_similarity")
)

res_anchor_cv$scores
#> # A tibble: 2 × 3
#>      mse mean_cosine_similarity .fold
#>    <dbl>                  <dbl> <int>
#> 1 0.0445                 0.122      1
#> 2 0.0501                 0.0554     2
stopifnot(all(is.finite(res_anchor_cv$scores$mse)))
stopifnot(all(is.finite(res_anchor_cv$scores$mean_cosine_similarity)))

Inference for graph-anchored models

graph_anchored_mfa() uses the same anchored prediction target, but adds a graph penalty over auxiliary features. The evaluation workflow stays the same: you can still use infer_muscal() for resampling summaries and cv_muscal() for held-out prediction.

colnames(X1) <- c(paste0("f", 1:4), paste0("u1_", 1:10))
colnames(X2) <- c(paste0("f", 1:4), paste0("u2_", 1:7))

fit_graph <- graph_anchored_mfa(
  Y = Y,
  X = list(X1 = X1, X2 = X2),
  row_index = list(X1 = idx1, X2 = idx2),
  ncomp = 2,
  feature_graph = "colnames",
  graph_lambda = 2
)

stopifnot(fit_graph$fit_spec$refit_supported)
stopifnot(all(is.finite(scores(fit_graph))))
boot_graph <- infer_muscal(
  fit_graph,
  method = "bootstrap",
  statistic = "sdev",
  nrep = 6,
  seed = 303
)

boot_graph$summary
#> # A tibble: 2 × 7
#>   component label observed  mean       sd lower upper
#>       <int> <chr>    <dbl> <dbl>    <dbl> <dbl> <dbl>
#> 1         1 comp1    0.169 0.168 0.000664 0.167 0.169
#> 2         2 comp2    0.169 0.168 0.00114  0.167 0.169
stopifnot(all(is.finite(boot_graph$summary$mean)))
stopifnot(all(boot_graph$summary$upper >= boot_graph$summary$lower))

Choosing the right validation path

  • Use infer_muscal() when the fitted method stores refit metadata and you want bootstrap intervals or permutation p-values.
  • Use cv_muscal() when you care about held-out reconstruction or prediction error.
  • Use method-specific tuning helpers such as ipca_tune_alpha() when the model has a dedicated hyperparameter-selection routine.

Not every method currently exposes generic refit metadata. When that is not yet available, you can still use cv_muscal() by providing explicit fit_fn, estimate_fn, and truth_fn callbacks. At present, mfa(), mcca(), ipca(), anchored_mfa(), aligned_mfa(), and graph_anchored_mfa() all support generic infer_muscal() workflows directly.
