Bilinear Mixed Models for Repeated Connectivity Matrices

Source: vignettes/bilinear_mixed.Rmd
bilinear_mixed.Rmd

The problem

You have a collection of connectivity matrices — one per scan, session, or trial — collected from multiple subjects under different experimental conditions. You want to answer questions like:

  • Which connectivity patterns differ across conditions?
  • Which patterns characterize individual subjects?
  • Can subject-level traits (age, performance) be predicted from connectivity?

Standard approaches either vectorize the matrices (losing structure) or analyze them one edge at a time (losing the multivariate picture). bilinear_mixed() keeps the matrix structure intact by learning low-rank row and column bases, then fitting a mixed model in that compressed space.

Quick start

We’ll simulate a small dataset: 8 subjects, each scanned under 3 conditions, producing 4-seed x 12-ROI connectivity matrices. A linear condition effect and subject-specific latent traits drive the signal.

set.seed(42)
n_subject <- 8
n_repeat  <- 3
n_seed    <- 4
n_roi     <- 12

subject   <- rep(paste0("S", seq_len(n_subject)), each = n_repeat)
condition <- rep(seq_len(n_repeat), times = n_subject)

Each element of data_list is a 4 x 12 matrix:

dim(data_list[[1]])
#> [1]  4 12
length(data_list)
#> [1] 24

Fit the model with supervised trait prediction:

fit <- bilinear_mixed(
  data      = data_list,
  subject   = subject,
  z         = z,
  y         = y_traits,
  mode      = "seed_axis",
  r_seed    = 2,
  r_roi     = 3,
  k_subject = 2,
  lambda_y  = 1.0,
  max_iter  = 30
)
fit
#> Bilinear Repeated-Measures Mixed Model
#>   mode: seed_axis
#>   observations: 24 | subjects: 8 | rows: 4 | cols: 12
#>   ranks (seed, roi): (2, 3) | subject latent K: 2
#>   connectivity type: cross
#>   axis head iterations: 30

The model has learned a 2 x 3 compressed core for each observation, estimated subject scores, recovered a condition-effect map, and linked the latent space to subject traits.

How it works

bilinear_mixed() decomposes each observed matrix XiX_i as:

Xi≈L(β0+Bzi+Wts(i))R⊤X_i \approx L\left(\beta_0 + B z_i + W t_{s(i)}\right) R^\top

where:

Symbol Meaning Dimensions
LL Seed (row) basis n_seed x r_seed
RR ROI (column) basis n_roi x r_roi
β0\beta_0 Grand-mean core r_seed x r_roi (vectorized)
BB Design effect coefficients (r_seed * r_roi) x n_design
WW Subject loading matrix (r_seed * r_roi) x K
ts(i)t_{s(i)} Subject scores (random effects) K x 1 per subject
AA Supervision map (optional) K x n_traits

The bases LL and RR are learned from the pooled covariance of the data, then the model alternates between updating WW, BB, tt, and AA in a regularized alternating least squares (ALS) loop.

The three analysis modes

The mode argument controls how the model treats the row (seed) dimension. This is the most important modelling choice, and the right answer depends on whether your rows are exchangeable observations or structured entities.

seed_axis: rows as a matrix axis

This is the default and most common mode. Each observed matrix XiX_i is projected onto both bases simultaneously to form a compressed core vector:

mi=vec(L⊤XiR)∈ℝrseed⋅rroim_i = \text{vec}\bigl(L^\top X_i\, R\bigr) \quad \in \mathbb{R}^{r_\text{seed} \cdot r_\text{roi}}

The mixed model is then fit on these core vectors:

mi=β0+Bzi+Wts(i)+εim_i = \beta_0 + B\,z_i + W\,t_{s(i)} + \varepsilon_i

Use seed_axis when: your matrices represent bivariate relationships between two sets of entities (seeds and ROIs, genes and conditions, etc.) and you want to model the full matrix pattern as a single observation.

fit_axis <- bilinear_mixed(
  data    = data_list,
  subject = subject,
  z       = z,
  mode    = "seed_axis",
  r_seed  = 2,
  r_roi   = 3,
  k_subject = 2,
  max_iter  = 30
)

What you get back: the axis slot contains seed-by-ROI effect maps that can be visualized as heatmaps. Each trait_maps[[k]] is a full 4 x 12 matrix, and each design_maps[[j]] shows how the jj-th design variable modulates the connectivity surface.

names(fit_axis$axis$trait_maps)
#> [1] "comp1" "comp2"
dim(fit_axis$axis$trait_maps[["comp1"]])
#> [1]  4 12
dim(fit_axis$axis$design_maps[[1]])
#> [1]  4 12

seed_repeat: rows as repeated observations

In this mode, each row of a matrix is treated as a separate observation of the same ROI profile. Instead of compressing both axes, only the column (ROI) axis is projected:

uij=Xi[j,⋅]R∈ℝrroiu_{ij} = X_i[j, \cdot]\; R \quad \in \mathbb{R}^{r_\text{roi}}

where jj indexes rows within matrix ii. This creates a “long-form” dataset with n_obs x n_seed rows, each of dimension r_roi. The mixed model is then:

uij=β0+Bdij+Wts(i)+εiju_{ij} = \beta_0 + B\,d_{ij} + W\,t_{s(i)} + \varepsilon_{ij}

where dijd_{ij} is a design vector that can include the repeat-level design ziz_i, row-level covariates from row_design, and their interactions.

Use seed_repeat when: your rows represent entities with their own properties (e.g., seed regions with spatial coordinates, voxels with tissue-type labels), and you want those properties to enter as covariates.

row_cov <- data.frame(
  position = seq(-1, 1, length.out = n_seed),
  hemi     = rep(c(-1, 1), length.out = n_seed)
)

fit_rep <- bilinear_mixed(
  data       = data_list,
  subject    = subject,
  z          = z,
  row_design = row_cov,
  mode       = "seed_repeat",
  r_roi      = 3,
  k_subject  = 2,
  max_iter   = 30
)

What you get back: the repeat_head slot contains ROI-space vectors rather than full matrices. The design is expanded to include row covariates and their interactions with the condition:

fit_rep$repeat_head$design_names
#> [1] "z1"          "row_cov1"    "row_cov2"    "z1:row_cov1" "z1:row_cov2"

Each roi_trait_maps[[k]] is a vector of length n_roi showing how each ROI loads on the kk-th subject component:

length(fit_rep$repeat_head$roi_trait_maps[[1]])
#> [1] 12

both: fit both heads with a shared ROI basis

This mode runs both analyses using the same ROI basis RR, giving you complementary views: the seed_axis head captures the full seed-by-ROI pattern, while the seed_repeat head reveals how row-level covariates modulate the ROI profile.

Use both when: you want the full matrix picture and you have meaningful row covariates.

fit_both <- bilinear_mixed(
  data       = data_list,
  subject    = subject,
  z          = z,
  row_design = row_cov,
  mode       = "both",
  r_seed     = 2,
  r_roi      = 3,
  k_subject  = 2,
  max_iter   = 30
)

The shared ROI basis ensures the two heads are comparable:

all.equal(fit_both$axis$R, fit_both$repeat_head$R)
#> [1] TRUE

Interpreting components across spaces

A single latent component kk has a footprint in three spaces: seed space (which rows it activates), ROI space (which columns it activates), and trait space (which subject-level outcomes it predicts). Understanding a component means seeing all three views together.

We’ll use the supervised fit for this section:

fit_sup <- bilinear_mixed(
  data      = data_list,
  subject   = subject,
  z         = z,
  y         = y_traits,
  mode      = "seed_axis",
  r_seed    = 2,
  r_roi     = 3,
  k_subject = 2,
  lambda_y  = 1.0,
  max_iter  = 30
)

Extracting the building blocks

Every component kk is defined by four objects stored in the fitted model. All outputs carry proper names — subject labels on scores, component labels on columns, trait names on the supervision map:

# Bases learned from the data
L <- fit_sup$axis$L    # seed basis: n_seed x r_seed
R <- fit_sup$axis$R    # ROI basis:  n_roi  x r_roi

# Per-component quantities
W <- fit_sup$axis$W              # loading matrix: (r_seed*r_roi) x K
t_scores <- fit_sup$axis$t_scores  # subject scores: n_subject x K
A <- fit_sup$axis$A              # supervision map: K x n_traits

Note how everything is labeled:

head(t_scores)  # rows = subjects, cols = comp1, comp2
#>          comp1      comp2
#> S1 -0.74220283  0.3029316
#> S2  0.22759622 -0.9031354
#> S3  2.70865789  0.3953440
#> S4  0.26760870 -0.6852734
#> S5  0.55348601 -0.5373639
#> S6 -0.02364459 -0.4909562
A               # rows = components, cols = trait names
#>         accuracy      speed
#> comp1 -0.7721786 -0.2173421
#> comp2 -0.1092141 -0.9947347

The loading matrix WW is the key to interpretation. Each column W[, k] is a vectorized r_seed x r_roi core, and the model pre-computes its back-projection to the original space as trait_maps:

# trait_maps[[k]] = L %*% matrix(W[,k], r_seed, r_roi) %*% t(R)
# Already computed and named:
names(fit_sup$axis$trait_maps)
#> [1] "comp1" "comp2"
dim(fit_sup$axis$trait_maps[["comp1"]])
#> [1]  4 12

Seed-space and ROI-space profiles

To understand where a component acts, the model pre-computes marginal profiles by averaging each trait map across the opposite axis:

# Pre-computed: no manual derivation needed
seed_profiles <- fit_sup$axis$seed_profiles  # n_seed x K
roi_profiles  <- fit_sup$axis$roi_profiles   # n_roi  x K
dim(seed_profiles)
#> [1] 4 2
dim(roi_profiles)
#> [1] 12  2

The seed profile tells you which rows (seeds) are most involved in the component; the ROI profile tells you which columns (ROIs) are most involved.

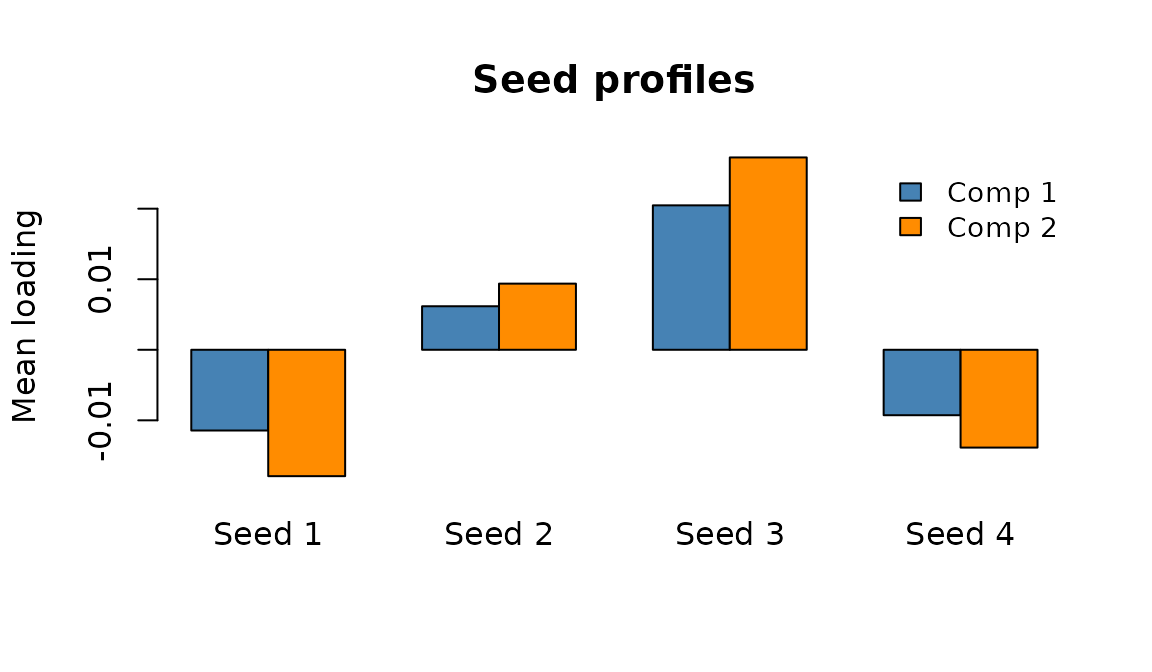

Seed-space profiles: average connectivity contribution of each seed for components 1 (blue) and 2 (orange).

Seed-space profiles: average connectivity contribution of each seed for components 1 (blue) and 2 (orange).

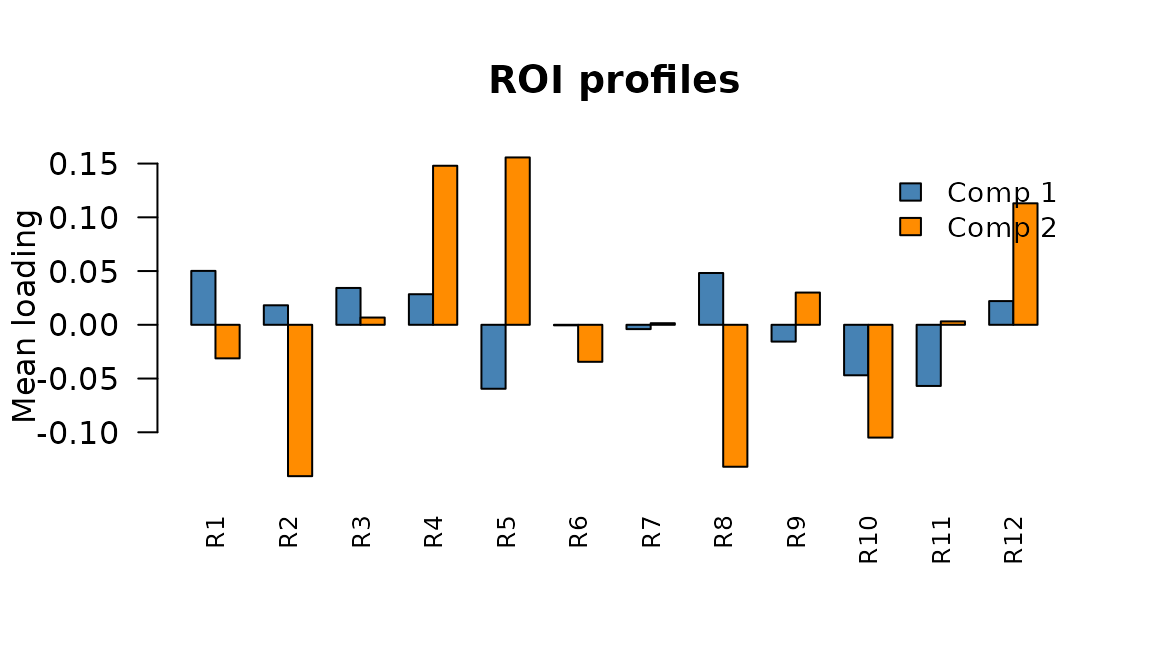

ROI-space profiles: average connectivity contribution of each ROI for components 1 and 2.

ROI-space profiles: average connectivity contribution of each ROI for components 1 and 2.

The full connectivity map

The trait map itself is the most informative view — it shows exactly which seed-ROI pairs are modulated by the component:

tmap1 <- fit_sup$axis$trait_maps[[1]]

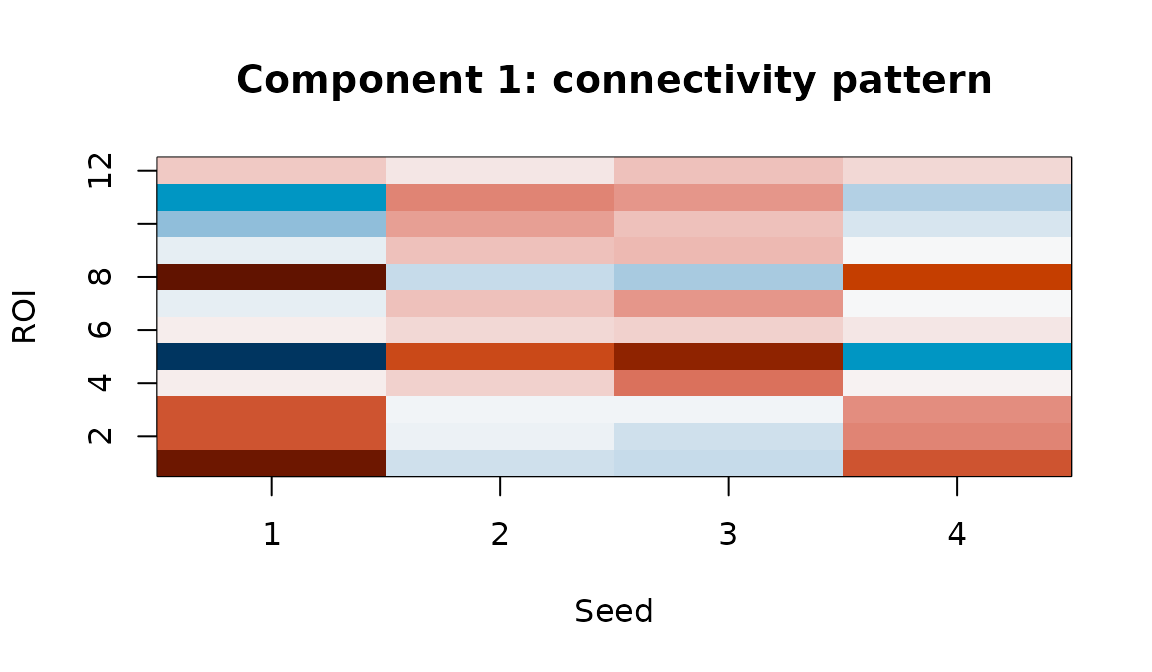

Component 1 trait map: the full seed x ROI connectivity pattern associated with individual differences on this latent dimension.

Component 1 trait map: the full seed x ROI connectivity pattern associated with individual differences on this latent dimension.

Subject scores in latent space

Subject scores position each individual along the components. Subjects with high scores on component kk express the connectivity pattern in trait_maps[[k]] more strongly:

# Subject scores come pre-labeled with subject IDs and component names
t_scores <- fit_sup$axis$t_scores
t_scores
#>          comp1      comp2
#> S1 -0.74220283  0.3029316
#> S2  0.22759622 -0.9031354
#> S3  2.70865789  0.3953440
#> S4  0.26760870 -0.6852734
#> S5  0.55348601 -0.5373639
#> S6 -0.02364459 -0.4909562
#> S7 -0.90929140  0.5859824
#> S8 -1.23393342 -0.2131423
Subject positions in the 2-D latent space. Proximity reflects similarity in connectivity patterns after removing condition effects.

Subject positions in the 2-D latent space. Proximity reflects similarity in connectivity patterns after removing condition effects.

Trait-space weights

The supervision map AA (K x n_traits) links subject scores to external measures. Each column of AA shows how a trait loads onto the latent components:

# A comes pre-labeled: rows = components, columns = trait names
A <- fit_sup$axis$A
A
#>         accuracy      speed
#> comp1 -0.7721786 -0.2173421
#> comp2 -0.1092141 -0.9947347

Read this row-by-row: the “accuracy” column shows how each component predicts accuracy; “speed” shows the same for speed. Or read column-wise: comp1 loads positively on accuracy but negatively on speed.

Putting it all together

The most powerful interpretation comes from viewing all four spaces in a single figure. For each component we show: the seed profile, the ROI profile, the full connectivity map, and the trait weights.

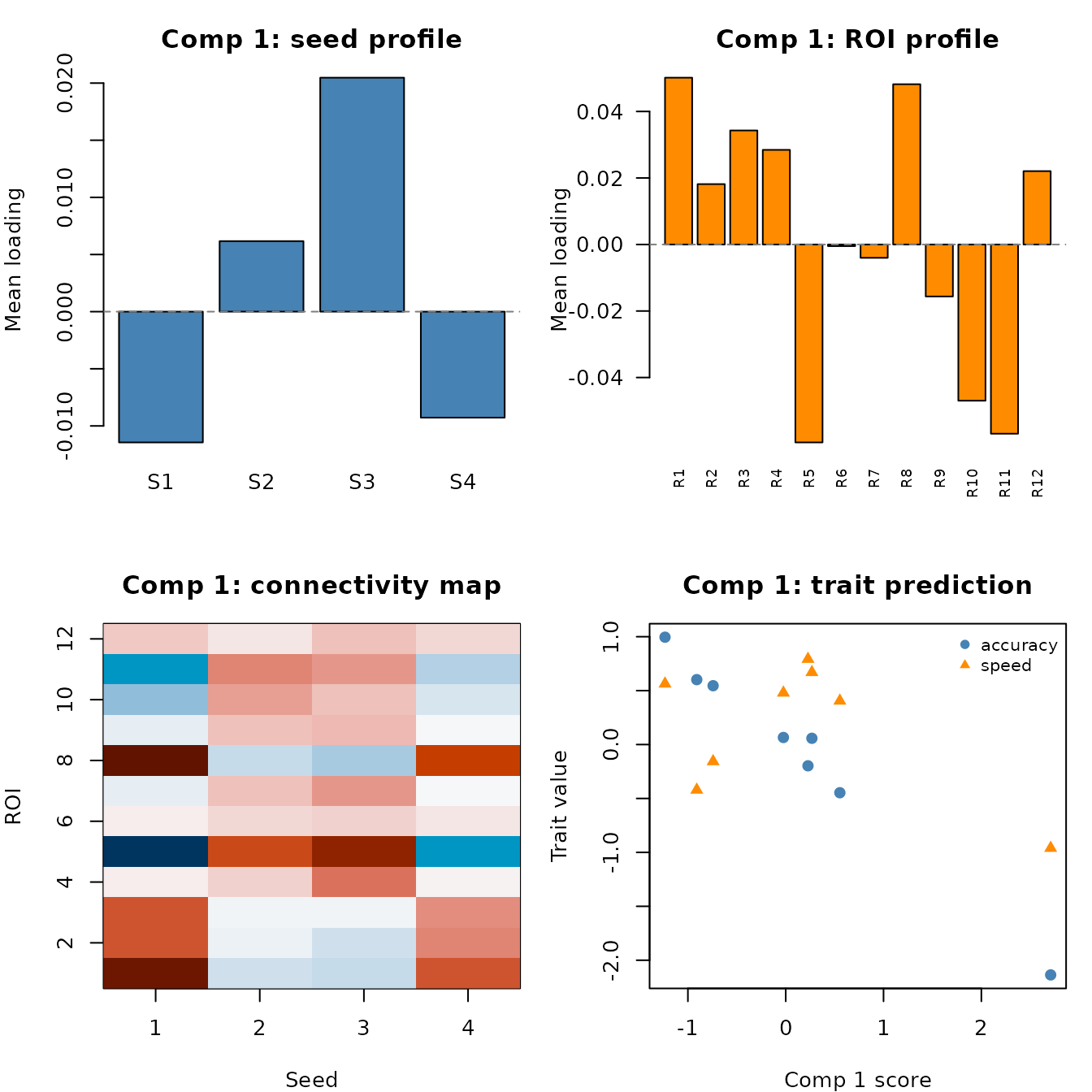

Component 1 across all four spaces. Top-left: which seeds are involved. Top-right: which ROIs are involved. Bottom-left: the full connectivity map. Bottom-right: how this component predicts traits, with subject scores along the x-axis.

Component 1 across all four spaces. Top-left: which seeds are involved. Top-right: which ROIs are involved. Bottom-left: the full connectivity map. Bottom-right: how this component predicts traits, with subject scores along the x-axis.

You can generate this panel for each component. Here is the code to produce it for an arbitrary component kk:

k <- 1  # change to inspect other components

par(mfrow = c(2, 2), mar = c(4, 4, 3, 1))

# 1. Seed profile — which rows matter? (pre-computed)
barplot(fit_sup$axis$seed_profiles[, k],
        col = "steelblue", main = paste("Comp", k, "- seed profile"))

# 2. ROI profile — which columns matter? (pre-computed)
barplot(fit_sup$axis$roi_profiles[, k],
        col = "darkorange", main = paste("Comp", k, "- ROI profile"))

# 3. Full connectivity map
tmap <- fit_sup$axis$trait_maps[[k]]
image(seq_len(nrow(tmap)), seq_len(ncol(tmap)), tmap,
      col = hcl.colors(64, "RdBu", rev = TRUE),
      main = paste("Comp", k, "- connectivity"))

# 4. Trait prediction
plot(fit_sup$axis$t_scores[, k], y_traits[, 1], pch = 19,
     xlab = paste("Comp", k, "score"), ylab = "Trait",
     main = paste("Comp", k, "- traits"))

Interpreting the seed_repeat head

In seed_repeat mode, there is no full seed-by-ROI trait map. Instead, the per-component footprint is a single ROI-space vector. The model also pre-computes an roi_profiles matrix (n_roi x K), analogous to the axis head’s profiles:

fit_rep2 <- bilinear_mixed(
  data       = data_list,
  subject    = subject,
  z          = z,
  y          = y_traits,
  row_design = row_cov,
  mode       = "seed_repeat",
  r_roi      = 3,
  k_subject  = 2,
  lambda_y   = 1.0,
  max_iter   = 30
)

# Pre-computed ROI profiles matrix
dim(fit_rep2$repeat_head$roi_profiles)
#> [1] 12  2

# Or access individual component vectors
roi_vec <- fit_rep2$repeat_head$roi_trait_maps[["comp1"]]
length(roi_vec)
#> [1] 12

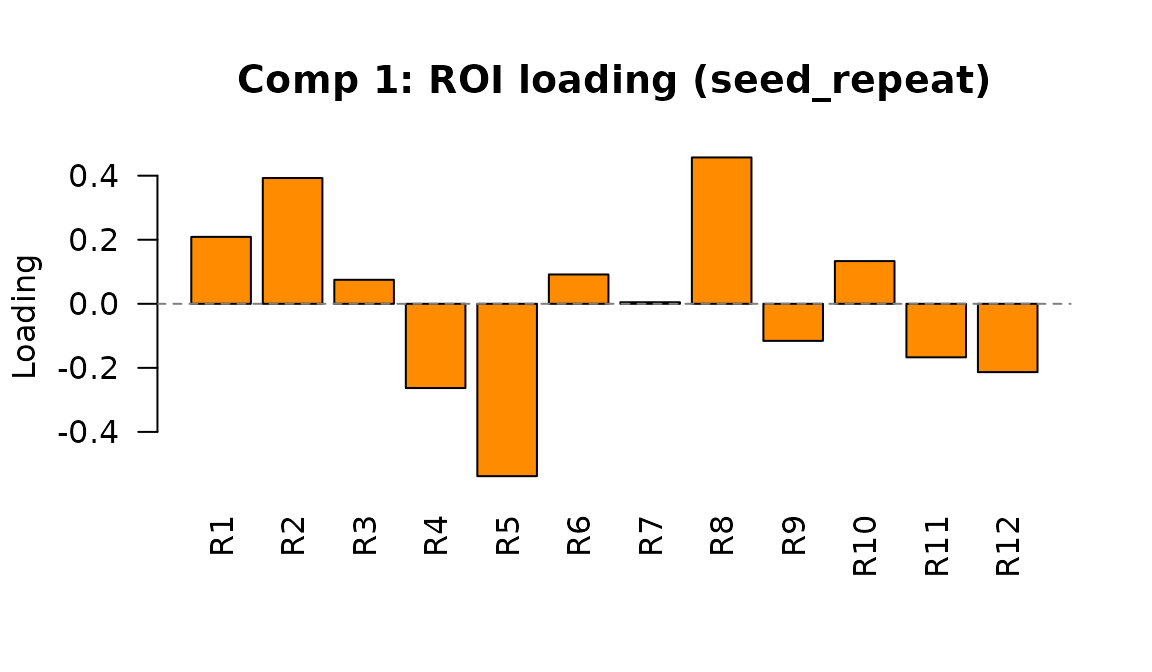

Component 1 ROI loading in seed_repeat mode. Each bar shows how strongly an ROI is associated with individual differences on this latent dimension.

Component 1 ROI loading in seed_repeat mode. Each bar shows how strongly an ROI is associated with individual differences on this latent dimension.

The design effect maps similarly live in ROI space. Each element of roi_design_maps shows how a design variable (condition, row covariate, or interaction) affects the ROI profile:

names(fit_rep2$repeat_head$roi_design_maps)
#> [1] "z1"          "row_cov1"    "row_cov2"    "z1:row_cov1" "z1:row_cov2"

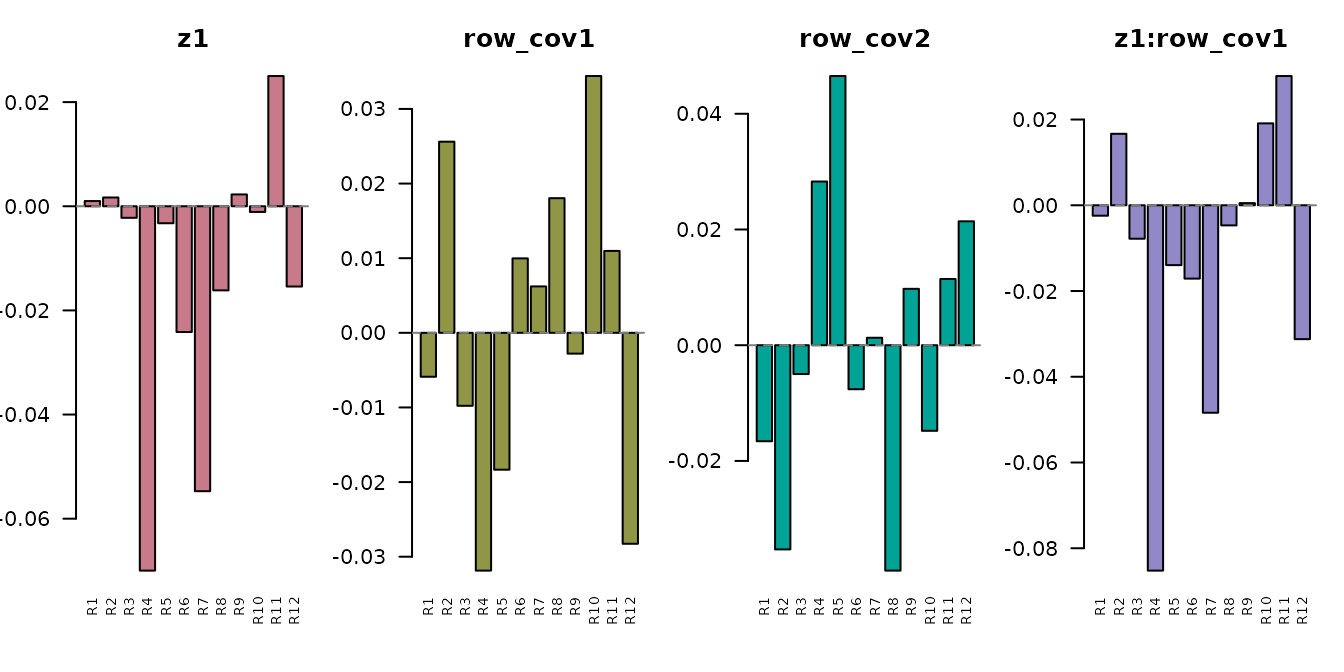

Design effect vectors in ROI space. The condition effect (z1) and its interactions with row covariates each produce a different ROI-space pattern.

Design effect vectors in ROI space. The condition effect (z1) and its interactions with row covariates each produce a different ROI-space pattern.

Comparing modes: what does each give you?

What you want seed_axis seed_repeat
Full seed x ROI maps trait_maps[["comp1"]], design_maps[[j]] Not available
Per-seed profiles seed_profiles (pre-computed, n_seed x K) Not available
Per-ROI profiles roi_profiles (pre-computed, n_roi x K) roi_profiles (pre-computed, n_roi x K)
ROI component vectors Derive via roi_profiles[, k] roi_trait_maps[["comp1"]] directly
Row-covariate effects Not supported roi_design_maps (main + interactions)
Subject scores axis$t_scores (labeled) repeat_head$t_scores (labeled)
Trait prediction axis$A (labeled) repeat_head$A (labeled)

Inspecting design effects

The fitted model back-projects design coefficients into the original space. In seed_axis mode, each design_maps[[j]] is a full seed x ROI matrix:

length(fit$axis$design_maps)
#> [1] 1
dim(fit$axis$design_maps[[1]])
#> [1]  4 12
Condition effect map. Each cell shows how connectivity between a seed-ROI pair changes with the experimental condition.

Condition effect map. Each cell shows how connectivity between a seed-ROI pair changes with the experimental condition.

Positive values indicate seed-ROI pairs whose connectivity increases with condition; negative values indicate decreases.

Symmetric connectivity

When your matrices are symmetric ROI x ROI correlation or covariance matrices, set connectivity_type = "symmetric". The model then forces a shared basis for rows and columns (L=RL = R), halving the basis parameters:

fit_sym <- bilinear_mixed(
  data              = sym_data,
  subject           = subject,
  z                 = z,
  mode              = "seed_axis",
  connectivity_type = "symmetric",
  r_seed            = 3,
  r_roi             = 3,
  k_subject         = 2,
  max_iter          = 25
)
fit_sym$connectivity_type
#> [1] "symmetric"

With connectivity_type = "auto" (the default), the model detects symmetry automatically by checking whether all matrices are equal to their transpose within sym_tol.

When symmetric, the trait maps are symmetric too — the node-level profile is just the row (or column) mean:

tmap_sym <- fit_sym$axis$trait_maps[[1]]
node_profile <- rowMeans(tmap_sym)  # = colMeans since symmetric
node_profile
#>  [1] -0.015793504 -0.032067382 -0.002930459  0.022385909  0.033966006
#>  [6]  0.002536994 -0.033387983 -0.017927297 -0.022917548  0.001420995

The easy API

For most analyses, bilinear_mixed_easy() picks sensible defaults automatically. You just specify a complexity profile:

fit_easy <- bilinear_mixed_easy(
  data    = data_list,
  subject = subject,
  z       = z,
  y       = y_traits,
  profile = "fast"
)
fit_easy
#> Bilinear Repeated-Measures Mixed Model
#>   mode: seed_axis
#>   observations: 24 | subjects: 8 | rows: 4 | cols: 12
#>   ranks (seed, roi): (2, 2) | subject latent K: 2
#>   connectivity type: cross
#>   axis head iterations: 50

The three profiles control how aggressively the model captures variance:

Profile Variance target Speed
"fast" 75% Fastest — good for exploration
"balanced" 85% Default for most analyses
"adaptive" 92% Thorough — higher ranks, more regularization

Behind the scenes, bilinear_mixed_recommend() inspects your data to set ranks, regularization strengths, and mode:

rec <- bilinear_mixed_recommend(
  data    = data_list,
  subject = subject,
  z       = z,
  y       = y_traits,
  profile = "balanced"
)
str(rec[c("mode", "r_seed", "r_roi", "k_subject", "lambda_t")])
#> List of 5
#>  $ mode     : chr "seed_axis"
#>  $ r_seed   : int 2
#>  $ r_roi    : int 4
#>  $ k_subject: int 2
#>  $ lambda_t : num 0.281

Tuning via cross-validation

When you need the best configuration, bilinear_mixed_tune() performs subject-blocked cross-validation over a grid of key parameters:

tuned <- bilinear_mixed_tune(
  data    = data_list,
  subject = subject,
  z       = z,
  y       = y_traits,
  metric  = "reconstruction",
  n_folds = 2,
  grid    = data.frame(
    r_seed    = c(1, 2, 3),
    r_roi     = c(2, 3, 4),
    k_subject = c(1, 2, 2),
    lambda_y  = c(0.5, 1, 1)
  )
)
tuned
#> Bilinear Mixed Tuning
#>   metric: reconstruction
#>   best score: 0.01992
#>   best params:
#>    - r_seed = 2
#>    - r_roi = 3
#>    - k_subject = 2
#>    - lambda_y = 1
#>
#> Top candidates:
#>  candidate r_seed r_roi k_subject lambda_y      score n_success
#>          2      2     3         2      1.0 0.01991592         2
#>          1      1     2         1      0.5 0.02454530         2
#>          3      3     4         2      1.0 0.03535052         2
CV reconstruction error by candidate. Lower is better.

CV reconstruction error by candidate. Lower is better.

The best candidate is automatically refit on the full dataset and stored in tuned$fit.

For supervised problems with trait data, use metric = "trait_r2" to select the configuration that best predicts subject traits:

tuned_trait <- bilinear_mixed_tune(
  data    = data_list,
  subject = subject,
  z       = z,
  y       = y_traits,
  metric  = "trait_r2"
)

Convergence

The ALS algorithm tracks a penalized objective at each iteration. You can inspect convergence to check that the model has stabilized:

obj <- fit$axis$objective_trace
length(obj)
#> [1] 30
Objective function over ALS iterations. Rapid initial descent followed by a plateau indicates convergence.

Objective function over ALS iterations. Rapid initial descent followed by a plateau indicates convergence.

If the trace hasn’t plateaued, increase max_iter. If the model oscillates, increase the ridge penalties (lambda_w, lambda_t).

Summary of key functions

Function Purpose
bilinear_mixed() Full control over all parameters
bilinear_mixed_easy() Automatic defaults with optional tuning
bilinear_mixed_recommend() Data-adaptive parameter suggestions
bilinear_mixed_tune() Subject-blocked CV for rank and regularization

Next steps
