Composing Surface Panel Figures

Source: vignettes/surface-panels.Rmd
surface-panels.Rmd

What problem are we solving?

You often have either parcel-level estimates or a continuous statistic on the cortical surface and need a figure that is already arranged, labelled, and publication-ready. The awkward part is not only panel composition. The figure must also preserve what the values mean: parcel maps may show atlas boundaries, whereas a continuous field should appear on a quiet anatomical substrate with no parcel or occlusion lines drawn over it.

plot_brain() and plot_brain_grid() are the high-level entry points for that job. They let you compose static surface figures directly from parcel values instead of building the figure by hand after plotting.

What do you need before you start?

For a parcel figure, you need a surface atlas and a keyed result table with one row per parcel. A positional numeric vector remains supported for code that already guarantees atlas order. For a continuous figure, use the same atlas to supply geometry, cortex mask, and anatomical provenance, then provide one value per surface vertex. The API also accepts a NeuroVol, but does not currently enforce that volume’s coordinate-space compatibility; the limitation is made explicit below.

atl <- schaefer_surf(
  parcels = 200,
  networks = 7,
  space = "fsaverage6",
  surf = "inflated"
)

parcel_results <- tibble::tibble(
  roi_index = atl$ids,
  Baseline = sin(seq_along(atl$ids) / 15),
  Follow_up = cos(seq_along(atl$ids) / 18)
)
parcel_results$Difference <-
  parcel_results$Baseline - parcel_results$Follow_up
parcel_results <- parcel_results[rev(seq_len(nrow(parcel_results))), ]

The first call may download and cache Schaefer annotation files. The figures below were generated from that exact configuration and are committed so the article remains useful during an offline build.

The deliberately reversed rows demonstrate that plotting uses roi_index, not table position. plot_brain_grid() can select several numeric columns from the same table.

plot_brain_grid(
  atl,
  data = parcel_results,
  values = c("Baseline", "Follow_up", "Difference"),
  by = c(id = "roi_index")
)

How do you build one polished panel figure?

Use plot_brain() when you want one figure with a few surface panels and a single legend.

plot_brain(
  atl,
  data = parcel_results,
  value = Baseline,
  by = c(id = "roi_index"),
  views = c("lateral", "medial"),
  interactive = FALSE,
  style = "ggseg_like",
  colorbar = "bottom",
  colorbar_title = "Standardized effect",
  title = "Parcel-level summary on fsaverage6",
  subtitle = "Bottom colorbar plus concise panel labels",
  panel_labels = c(
    "Left Lateral" = "LH lateral",
    "Right Lateral" = "RH lateral",
    "Left Medial" = "LH medial",
    "Right Medial" = "RH medial"
  )
)

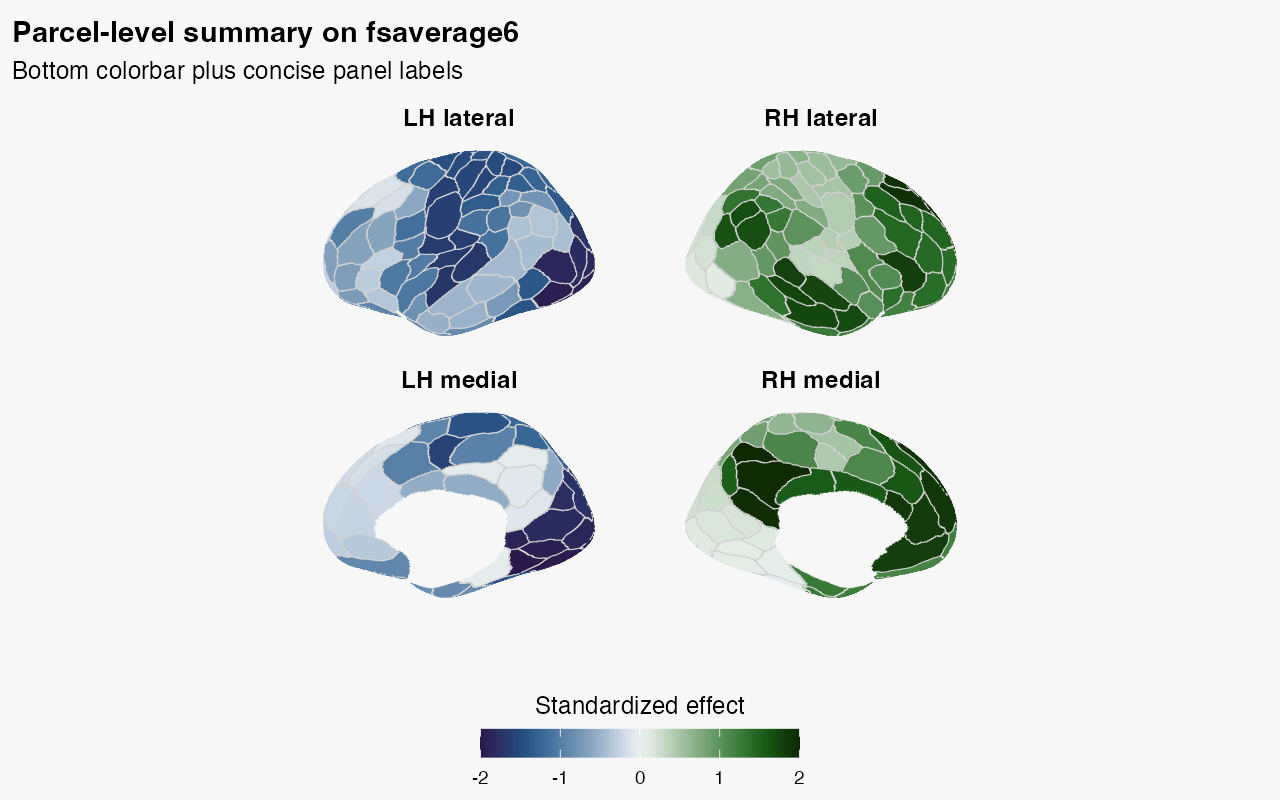

Schaefer parcels on left and right inflated hemispheres in lateral and medial views, coloured by one value per parcel with a horizontal standardized-effect colorbar.

This is the default static workflow when you want:

  • view-aware facet labels without post-hoc editing
  • one explicit legend instead of an implicit colour mapping
  • a single annotated figure object you can render or save directly

How do you show a continuous statistic instead?

Use style = "stat_publication" when the colour represents a continuous vertex-wise field rather than parcels. The preset selects a neutral cortex, removes parcel and culling-derived silhouette lines, keeps anatomy below the statistic, and obtains the legend from the overlay rather than from a dummy base map.

This example derives a smooth synthetic field from the inflated coordinates. Replace stat_overlay with your own list(lh = ..., rh = ...) after checking that each vector has one value per vertex.

stat_figure <- plot_brain(
  atl,
  overlay = stat_overlay,
  overlay_threshold = 1,
  overlay_lim = c(-2.5, 2.5),
  overlay_title = "z-score",
  style = "stat_publication",
  static_backend = "cpu",
  interactive = FALSE,
  colorbar = "bottom",
  medial_wall = "shade",
  camera = "canonical",
  orientation_labels = FALSE,
  title = "Continuous statistic on fsaverage6"
)

stat_figure

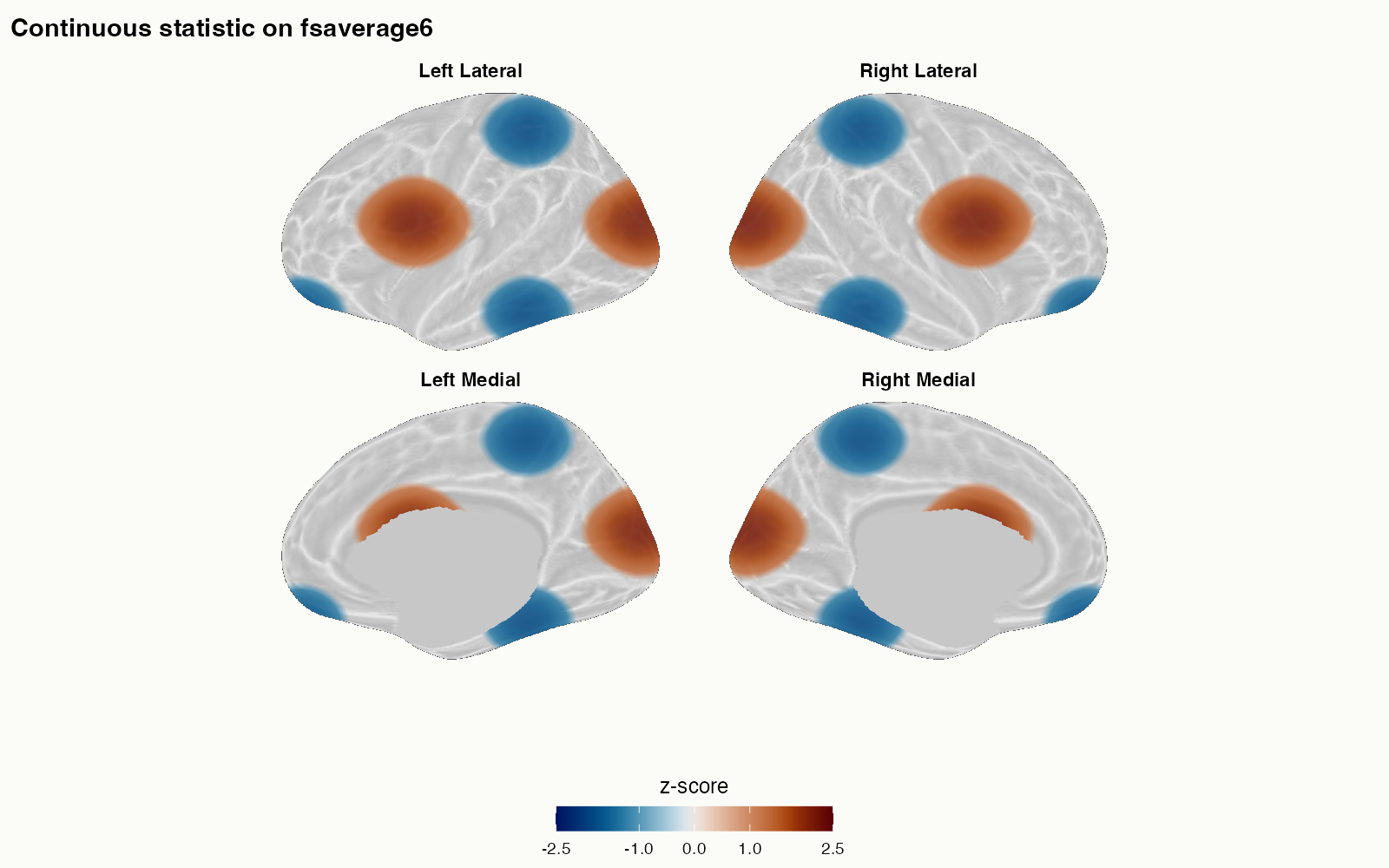

Continuous signed statistic projected across lateral and medial views of both hemispheres, with blue negative and orange positive regions, a neutral medial wall, and a horizontal z-score colorbar.

Notice that the threshold appears as marks at -1 and 1, while the colour limits remain exactly [-2.5, 2.5]. The cortex mask is independent of parcel values, so the medial wall cannot acquire overlay colour merely because an atlas uses label zero. When curvature comes from separate white geometry, the returned provenance reports whether that mesh and the displayed mesh have identical vertex dimensions and face connectivity. An explicit anatomy vector cannot establish that topology by itself.

plot_brain() can accept a NeuroVol as overlay, but the current projection path cannot read a template-space identity from that object and does not enforce or apply a cross-coordinate transform. Treat this as unchecked caller responsibility: use only a volume already expressed in the coordinates of the resolved white and pial surfaces. fsaverage surfaces use MNI305 coordinates, whereas most modern MNI volumes use MNI152 coordinates; do not pass such a volume directly. The sampling itself uses five fractions from 0.1 through 0.9 of the white-to-pial ribbon, averages those depth samples, and applies no tangential smoothing unless requested. Projection, mask, anatomy, camera, and legend choices are retained as attributes on the returned figure.

How do you compare several maps with one legend?

Use plot_brain_grid() when each panel is a different map but the colour scale should mean the same thing everywhere.

plot_brain_grid(
  atl,
  data = parcel_results,
  values = c("Baseline", "Follow_up", "Difference"),
  by = c(id = "roi_index"),
  views = c("lateral", "medial"),
  titles = c("Baseline", "Follow-up", "Difference"),
  shared_scale = TRUE,
  colorbar = "right",
  colorbar_title = "z-score",
  title = "Comparing parcel maps with a shared legend",
  subtitle = "Every panel uses the same limits and the same view labels",
  panel_labels = c(
    "Left Lateral" = "LH lateral",
    "Right Lateral" = "RH lateral",
    "Left Medial" = "LH medial",
    "Right Medial" = "RH medial"
  ),
  style = "ggseg_like",
  ncol = 3
)

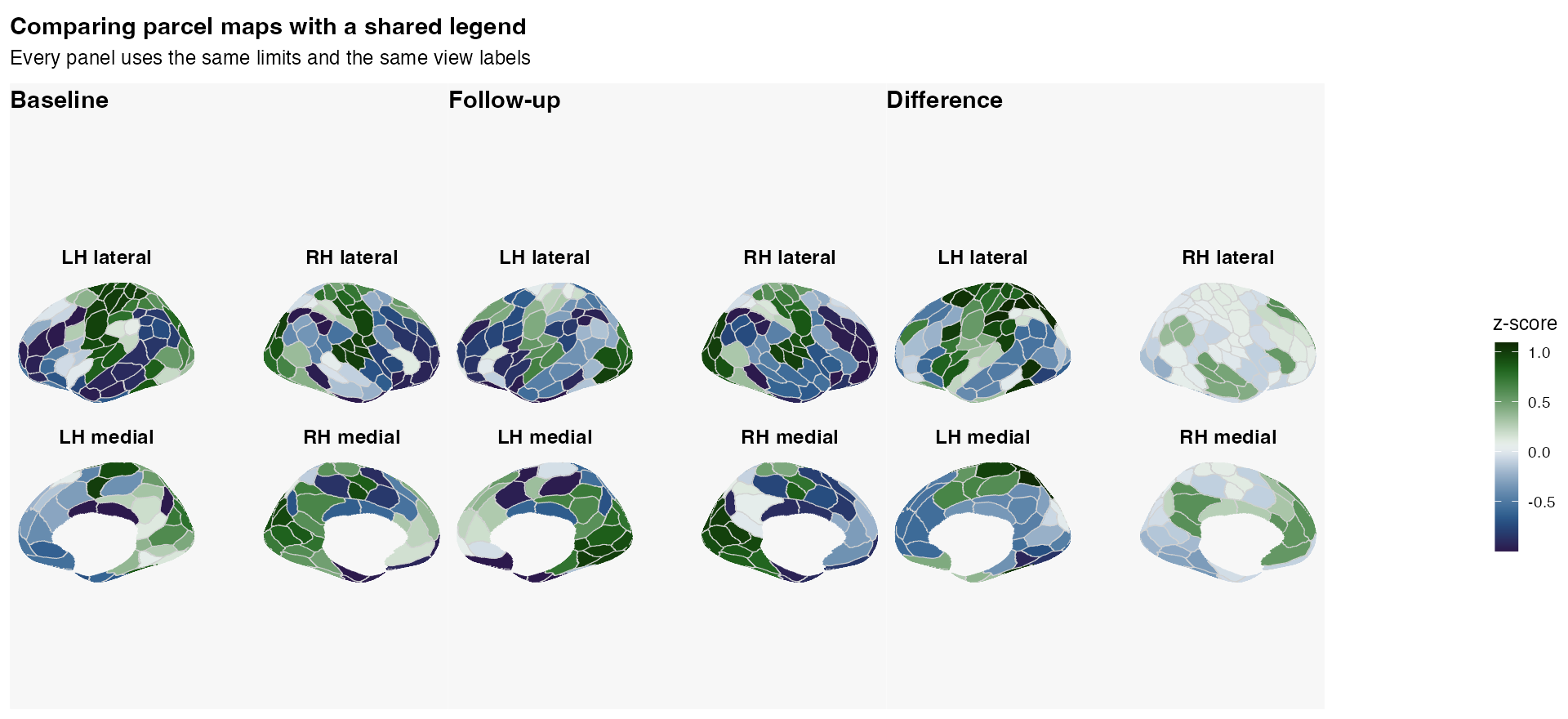

Three Schaefer parcel maps arranged in one row: baseline, follow-up, and difference. Each map contains lateral and medial views of both hemispheres and all use one vertical z-score colorbar.

The arguments that matter most here are:

  • titles: names each map
  • shared_scale = TRUE: enforces one global value range
  • colorbar: places a shared legend on the right or bottom
  • panel_labels: simplifies the repeated surface-view labels

If you want each panel to optimise its own within-panel contrast, use shared_scale = FALSE, colorbar = FALSE. That can make weak patterns easier to see, but you lose strict colour comparability across panels, so a single global colorbar would be misleading.

How should you label the panels?

Panel labels name the surface being shown: hemisphere plus view, such as Left Lateral or Right Medial. They do not describe where the panel sits in the final grid.

In lateral and medial views, plot_brain() uses a fixed anatomical orientation: left hemispheres have anterior on the left, and right hemispheres have anterior on the right.

Use panel_labels when the default labels are too long. Keep both the hemisphere and the view when a figure mixes lateral and medial views; use shorter labels such as LH and RH only when each hemisphere appears in one view.

What should you remember?

Choose the style from the scientific object you are displaying:

  • use style = "ggseg_like" for parcel identities or parcel-valued estimates;
  • use style = "stat_publication" for a continuous vertex field or projected statistic volume;
  • use the default ggplot backend for parcel tables, and keep the CPU backend for deterministic continuous vertex overlays.

Then adjust:

  • panel_labels for shorter facet labels
  • colorbar and colorbar_title for the shared legend
  • title, subtitle, and caption for figure annotations
  • ncol for the panel grid

For a continuous field, prefer overlay_threshold, overlay_lim, medial_wall, and camera over low-level line-width controls. Parcel boundaries and internal depth discontinuities are not activation contours.

Use panel_layout = "native" only when you need the raw projected coordinates for a custom workflow.
