Loads a FreeSurfer fsaverage template that ships with neurosurf and returns
it as SurfaceGeometry objects. Two densities are
bundled: "fsaverage5" (10,242 vertices per hemisphere; inflated and
white surfaces) and the legacy "std.8" mesh (642 vertices per
hemisphere; smoothwm, pial, inflated, white, and sphere surfaces). Use
fsaverage5 for figures and examples; std.8 is kept for small tests.
Usage
load_fsaverage(density = c("std.8", "fsaverage5"), surf = NULL)Arguments
- density
Surface density:
"std.8"(default, for backward compatibility) or"fsaverage5".- surf
Character string specifying which surface to load. One of
"smoothwm","pial","inflated","white", or"sphere"for std.8;"inflated"or"white"for fsaverage5. Defaults to"smoothwm"for std.8 and"inflated"for fsaverage5.
Details
The fsaverage5 files are the FreeSurfer fsaverage5 template as redistributed by nilearn, under the FreeSurfer license.
Examples
# \donttest{

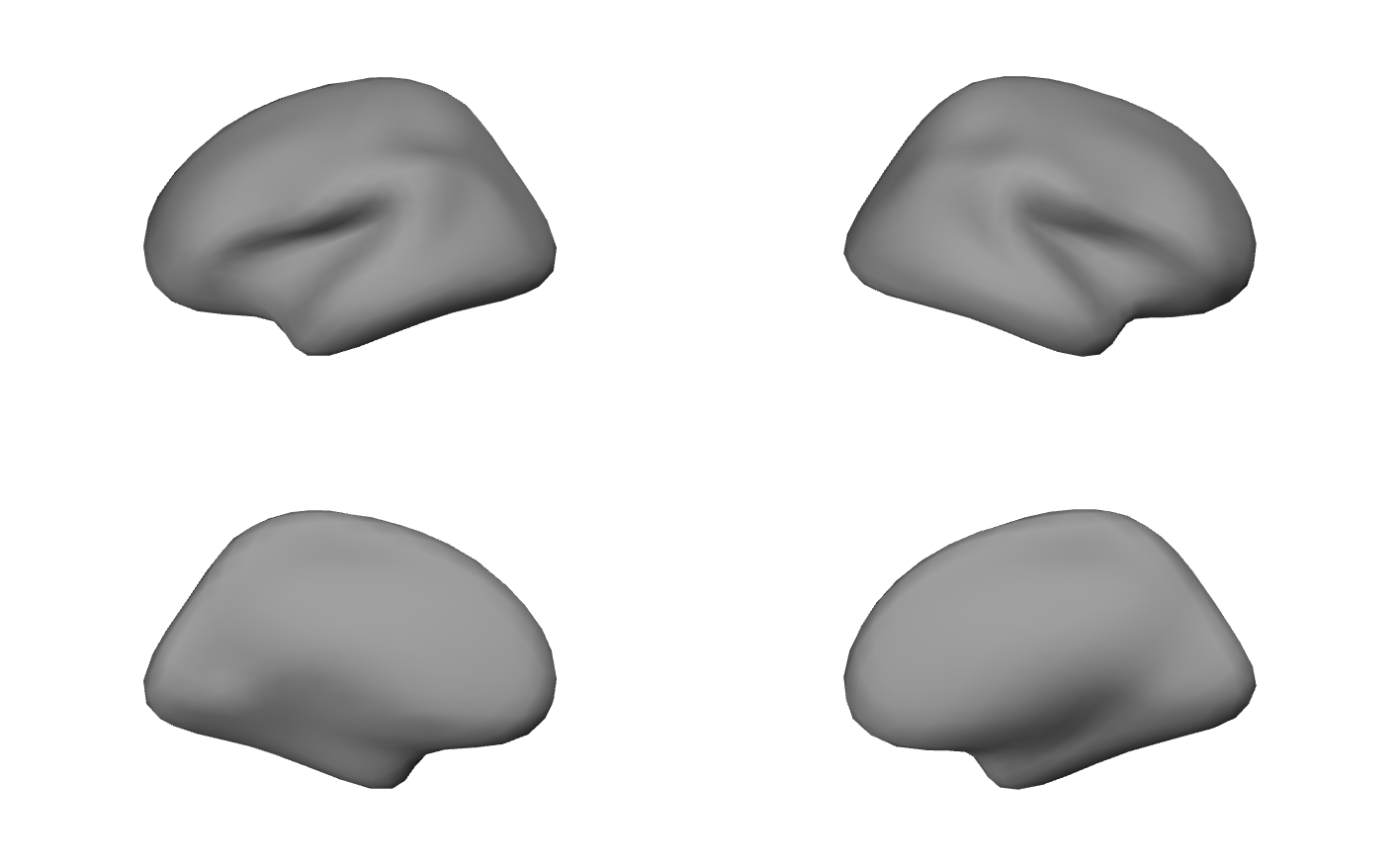

fs <- load_fsaverage("fsaverage5", "inflated")
nrow(coords(fs$lh))
#> [1] 10242
# }
