Publication-quality continuous surface figures

neurosurf authors

2026-09-08

Source: vignettes/surface-figures.Rmd
surface-figures.Rmd

You have a continuous value at every cortical vertex–for example a t, z, thickness, or connectivity map–and need a static figure that remains scientifically interpretable after thresholding. The important distinction is that the value is a field on a triangle mesh, not a parcel label. A polished figure should therefore interpolate the scalar within each triangle, test visibility with a real depth buffer, and add anatomy without drawing atlas or occlusion lines over the result.

Two functions cover this task. surface_figure() renders both hemispheres from several views and returns one finished figure with a shared colour bar; write_surface_figure() writes it to PNG. Underneath it, render_surface_rgba() is the deterministic, headless single-panel primitive: it returns an RGBA raster plus diagnostic buffers and provenance, and write_surface_rgba() writes one panel to PNG. Both run identically in CI, on a cluster, and on a laptop, with no OpenGL and no browser.

What are the inputs?

You need a display geometry and one numeric value per vertex. For anatomical context, use a curvature or sulcal-depth metric from a corresponding white, pial, or midthickness surface rather than computing curvature on the inflated display shape.

The package includes matching decimated fsaverage surfaces, which keep this example fast and offline.

inflated <- load_fsaverage_std8("inflated")

read_geom <- function(name) {
  read_surf_geometry(system.file("extdata", name, package = "neurosurf"))
}
white_lh <- read_geom("std.8_lh.white.asc")
white_rh <- read_geom("std.8_rh.white.asc")

Here a smooth coordinate-based field stands in for your measured statistic. The renderer treats it exactly like any other vertex-wise numeric vector.

example_statistic <- function(geometry) {
  xyz <- coords(geometry)
  value <- sin(xyz[, 2] / 18) + cos(xyz[, 3] / 14) +
    0.7 * sin(xyz[, 1] / 12)
  as.numeric(scale(value))
}

stat_lh <- example_statistic(inflated$lh)
stat_rh <- example_statistic(inflated$rh)

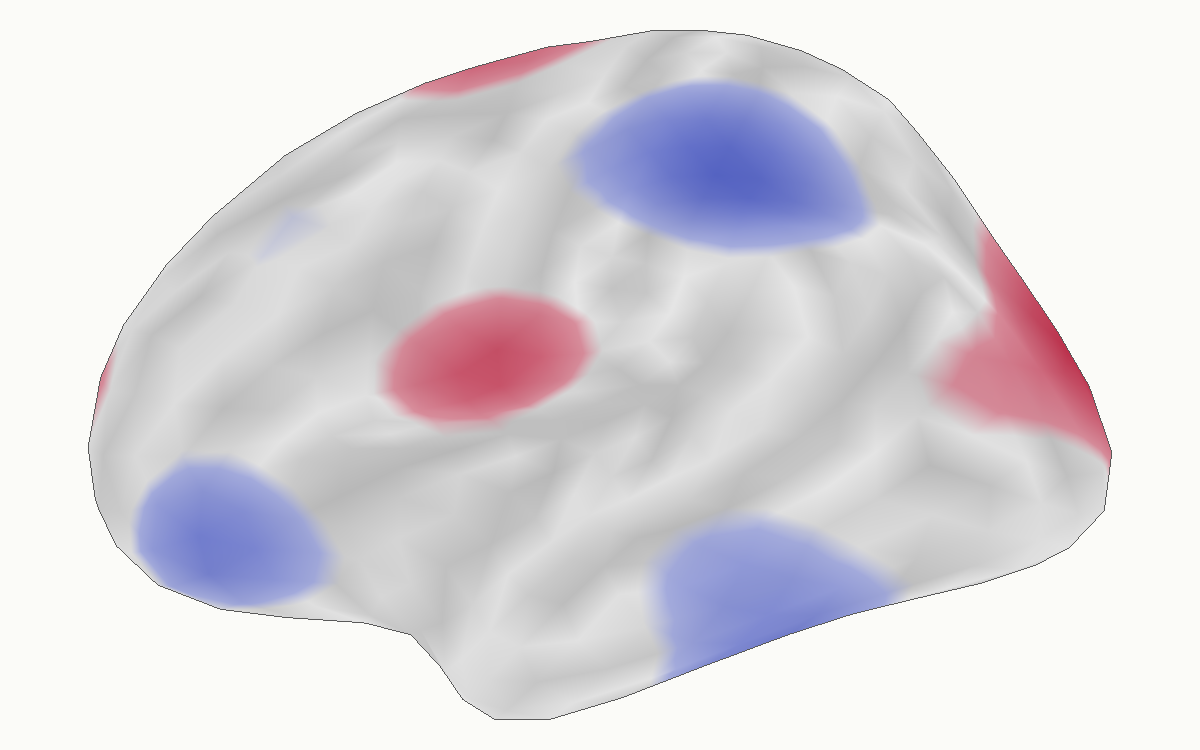

How do you render one thresholded view?

Choose the threshold and colour limits as scientific inputs. In this example, the colour scale stays fixed at [-2.5, 2.5], while an opacity ramp softens only the visual transition immediately above |z| = 1.

lh_lateral <- render_surface_rgba(
  inflated$lh,
  vertex_values = stat_lh,
  anatomy_metric = curv_lh,
  camera = "lateral",
  threshold = 1,
  tail = "two_sided",
  limits = c(-2.5, 2.5),
  alpha_ramp = 0.25,
  antialias = 2
)

The colour at each covered sample comes from the barycentrically interpolated scalar. Thresholding and palette mapping happen after that interpolation, so a threshold boundary may cross a triangle instead of jumping from one mesh edge to the next. The per-sample z-buffer independently decides which folded surface fragment is visible.

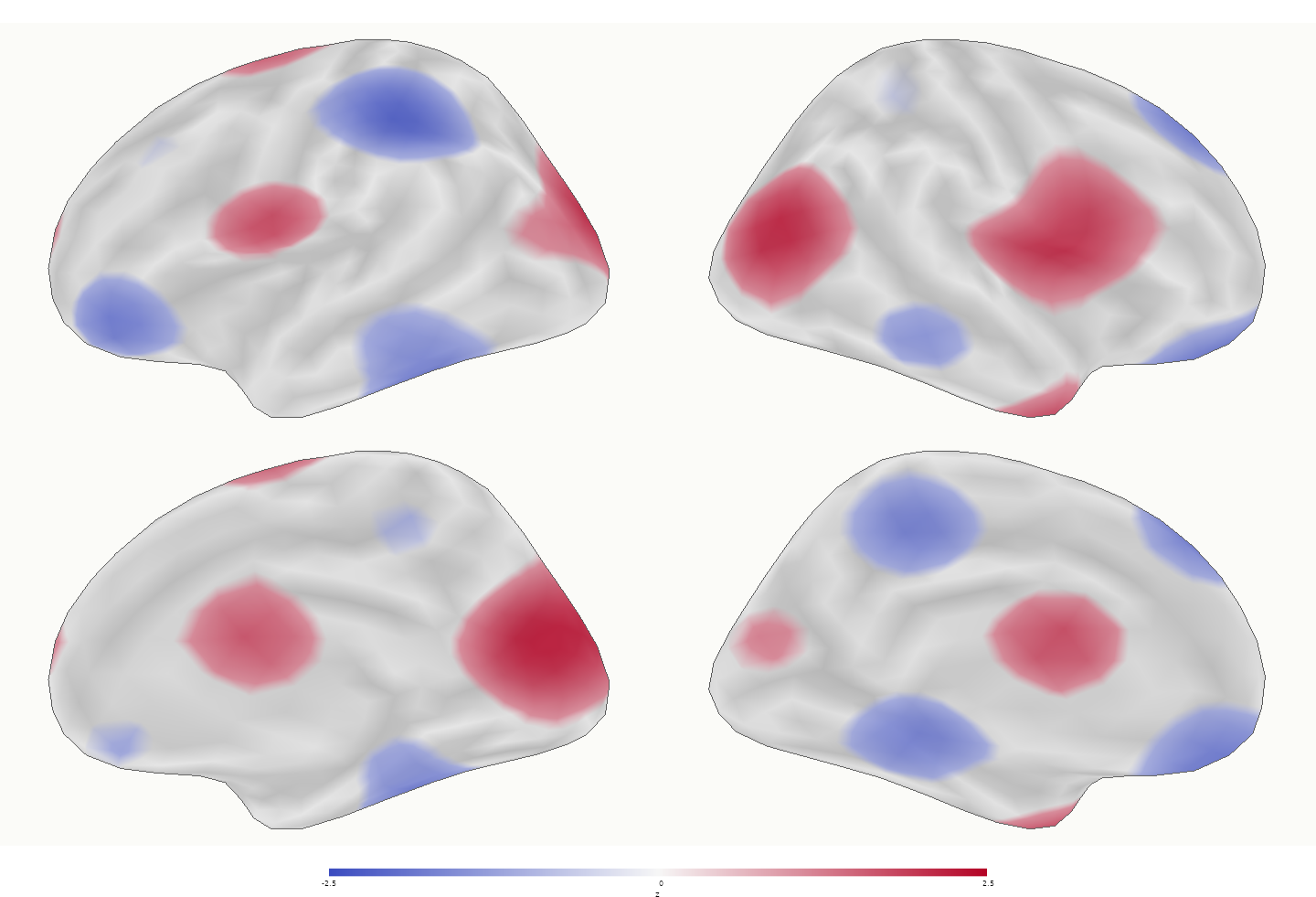

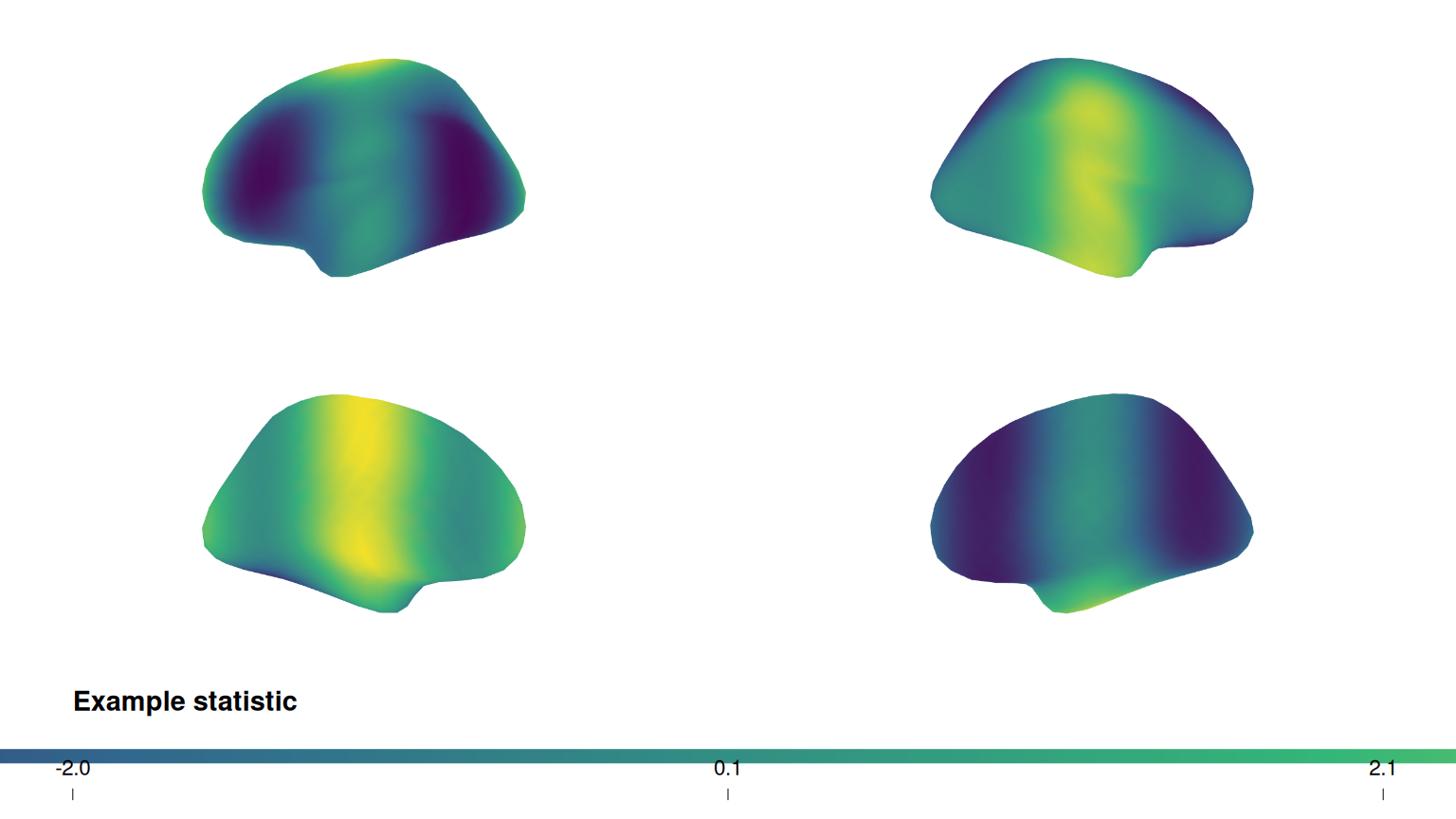

How do you build the four canonical views?

surface_figure() renders every hemisphere-view combination with one shared threshold, colour limit, and palette, and adds the colour bar. The camera contract is explicit: camera_mode = "canonical" is strict orthographic output, while "presentation" adds a small declared obliquity.

figure <- surface_figure(
  lh = inflated$lh,
  rh = inflated$rh,
  values = list(lh = stat_lh, rh = stat_rh),
  anatomy = list(lh = curv_lh, rh = curv_rh),
  views = c("lateral", "medial"),
  threshold = 1,
  tail = "two_sided",
  limits = c(-2.5, 2.5),
  alpha_ramp = 0.25,
  legend_title = "z",
  panel_width = 720,
  panel_height = 450,
  antialias = 2
)

In an interactive session, plot(figure) draws the same figure on the current graphics device.

The lateral and medial views differ because each panel rasterizes the visible triangles from its own camera. Internal sulcal occlusion edges are not drawn as outlines; outer_contour = TRUE marks only cortex touching background that is connected to the image exterior.

Where do the medial wall and cortex mask enter?

A real cortex mask is a separate domain object, not a consequence of parcel value zero. Pass one logical value per vertex. Triangles touching a masked vertex never receive overlay colour. medial_wall then controls whether the excluded domain is quietly shaded, omitted, or outlined.

masked_panel <- render_surface_rgba(
  inflated$lh,
  vertex_values = statistic,
  anatomy_metric = white_surface_curvature,
  cortex_mask = cortex_label,
  medial_wall = "shade"
)

Atlas-aware callers such as neuroatlas::plot_brain() can resolve the mask and its provenance from an atlas annotation. At this low level, neurosurf requires the caller to supply the domain explicitly rather than guessing that an atlas label of zero always means medial wall.

How should a volume become a continuous surface field?

For a continuous image, use explicit trilinear sampling through the cortical ribbon. Interpolation, aggregation across depth, and tangential smoothing are separate choices. The following contract samples five depths, averages them, and applies no surface smoothing:

mapped <- vol_to_surf(
  white_surface,
  pial_surface,
  statistic_volume,
  fun = "avg",
  sampling = "thickness",
  interpolation = "linear",
  depth = seq(0.1, 0.9, length.out = 5),
  aggregate = "mean",
  surface_smooth_fwhm = 0
)

Use interpolation = "nearest" for discrete nearest-voxel sampling. The historical Gaussian KNN behaviour remains available as interpolation = "legacy". Categorical aggregate = "mode" is intentionally incompatible with linear interpolation.

Which function draws what you need?

Start from the output you want:

You want Use
A finished static figure: views by hemispheres, one colour bar surface_figure(), then write_surface_figure()
One panel, or a custom layout you compose yourself render_surface_rgba(), then write_surface_rgba()
To rotate and inspect a map on your desktop during analysis view_surface()
An interactive figure in an HTML report or Shiny app surfwidget(); see vignette("interactive-surfaces")

The first two run headlessly and deterministically; the last two are interactive sessions.

Two companion packages build on the same renderer, so their pixels agree with the figures here: neuroatlas::plot_brain() adds atlas-derived masks, labels, and orientation marks, and neuromosaic::surf_montage() starts from a statistic volume rather than vertex values. Atlas outlines belong in figures about the atlas; the default continuous-statistic view omits them.
