Before anything else, you need to answer one question: does this look right? The plotting helpers exist for that first visual check. They take NeuroVol objects, preserve aspect ratio, scale intensities robustly by default, and return ordinary ggplot2 objects you can modify or save.

anat <- demo_anatomy()
brain <- demo_anatomy_mask()
stat_map <- demo_stat_map(brain, radius_mm = 6)

identical(space(anat), space(stat_map))
#> [1] TRUE

The statistical map here is fitted, not drawn: a design is planted in two spheres of a simulated series and a t-statistic is computed at every voxel. It shares a NeuroSpace with the anatomy, which every overlay helper requires.

zlevels <- round(seq(12, 38, length.out = 6))

The plotting helpers read anatomical direction from the image affine. Axis permutations and left-right, anterior-posterior, or inferior-superior flips are corrected for display without changing voxel values. An oblique image remains an oblique native slice: use deoblique() first when you need resampled, cardinal-plane sections rather than a view of the stored voxel planes.

A montage of slices

plot_montage() scans several slices at once and returns a single ggplot object.

plot_montage(anat,
  zlevels = zlevels, ncol = 6,
  cmap = anatomy_cmap, range = "robust",
  title = "Anatomical montage", style = "dark"
)

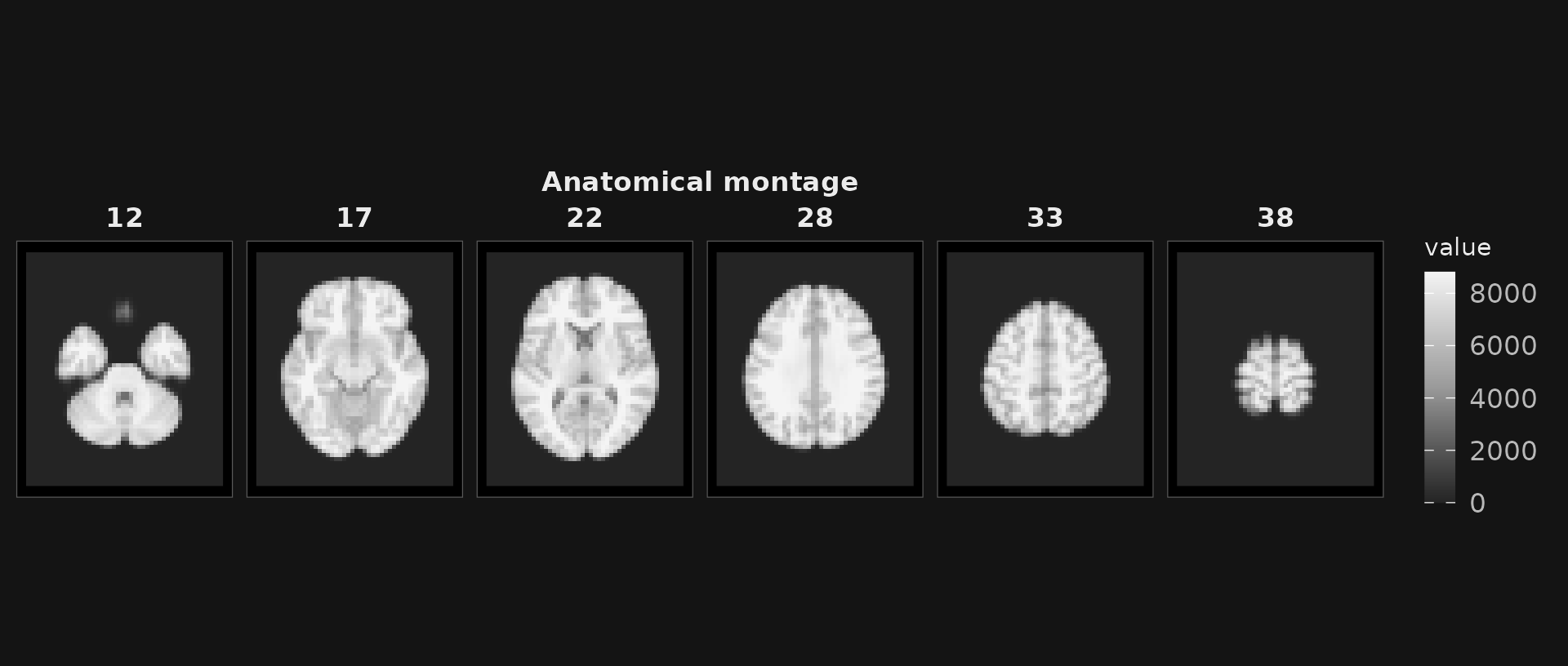

Six axial anatomical slices on a dark background.

Six axial slices with robust intensity scaling.

style = "light" is the version for a manuscript page:

plot_montage(anat,
  zlevels = zlevels[1:4], ncol = 4,
  cmap = anatomy_cmap, range = "robust",
  title = "Light style", style = "light"
)
Four axial anatomical slices, dark brain tiles on a light page.

The same slices in the light style.

range = "robust" clips to percentiles rather than the extremes. Use it unless the outliers are the point — a single bright voxel on the default full range flattens everything else to black.

One location in three planes

plot_ortho() is for when you care about a specific point rather than a set of slices. The crosshairs confirm that all three panels show the same place.

plot_ortho(anat,
  coord = round(dim(anat) / 2), unit = "index",
  cmap = anatomy_cmap, title = "Three-plane view", style = "dark"
)

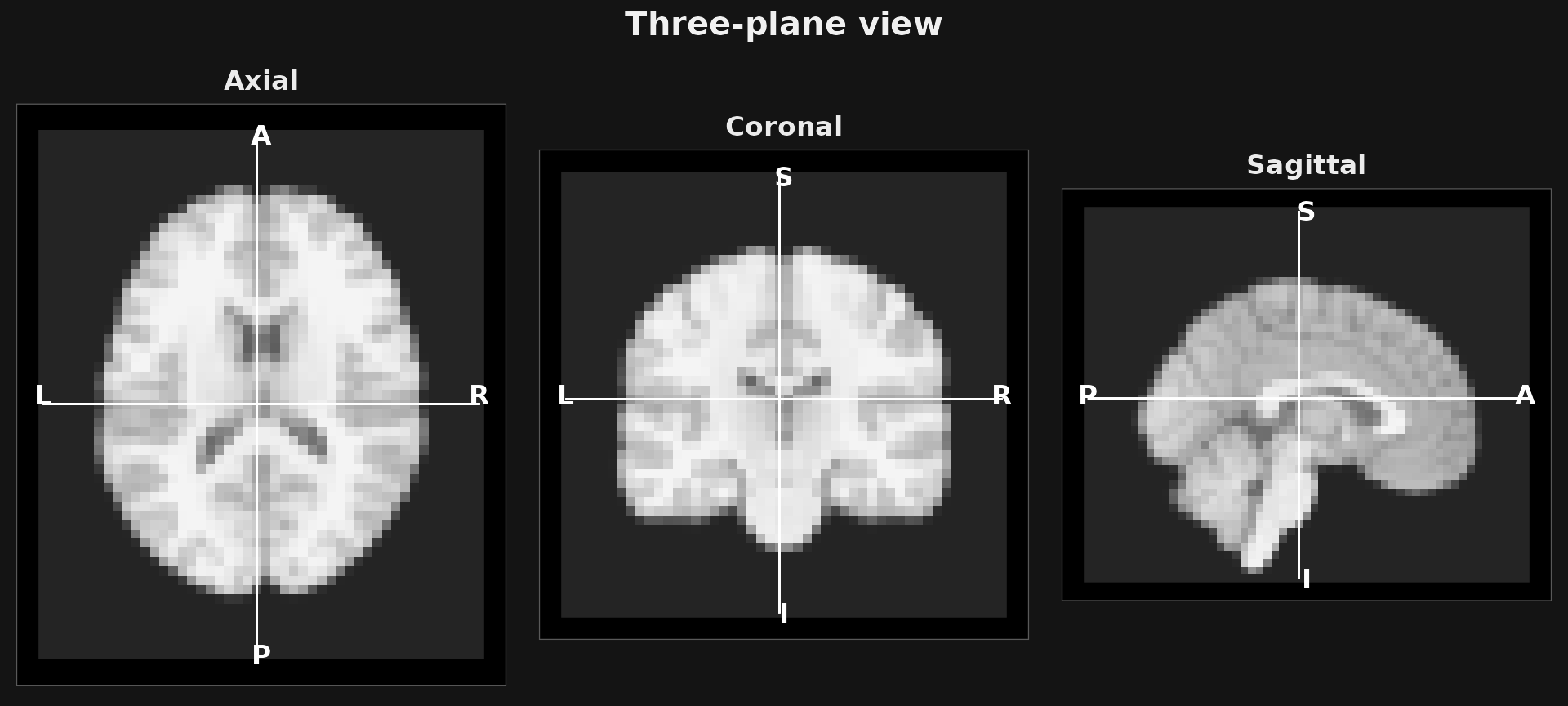

Three orthogonal slices with crosshairs.

Axial, coronal and sagittal views through one voxel.

draw = FALSE returns the panels instead of drawing them, which is what you want when composing or saving figures yourself:

names(plot_ortho(anat, coord = round(dim(anat) / 2), draw = FALSE))
#> [1] "axial"    "coronal"  "sagittal"

Overlaying a statistical map

plot_overlay() puts one volume on top of another. For a signed map, a diverging palette with symmetric limits keeps positive and negative comparable:

plot_overlay(
  bgvol = anat, overlay = stat_map,
  zlevels = zlevels, ncol = 6,
  bg_cmap = anatomy_cmap, bg_range = "robust",
  ov_cmap = "coldhot", ov_thresh = 3, ov_symmetric = TRUE, ov_alpha = 0.8,
  title = "t > 3", style = "dark"
)

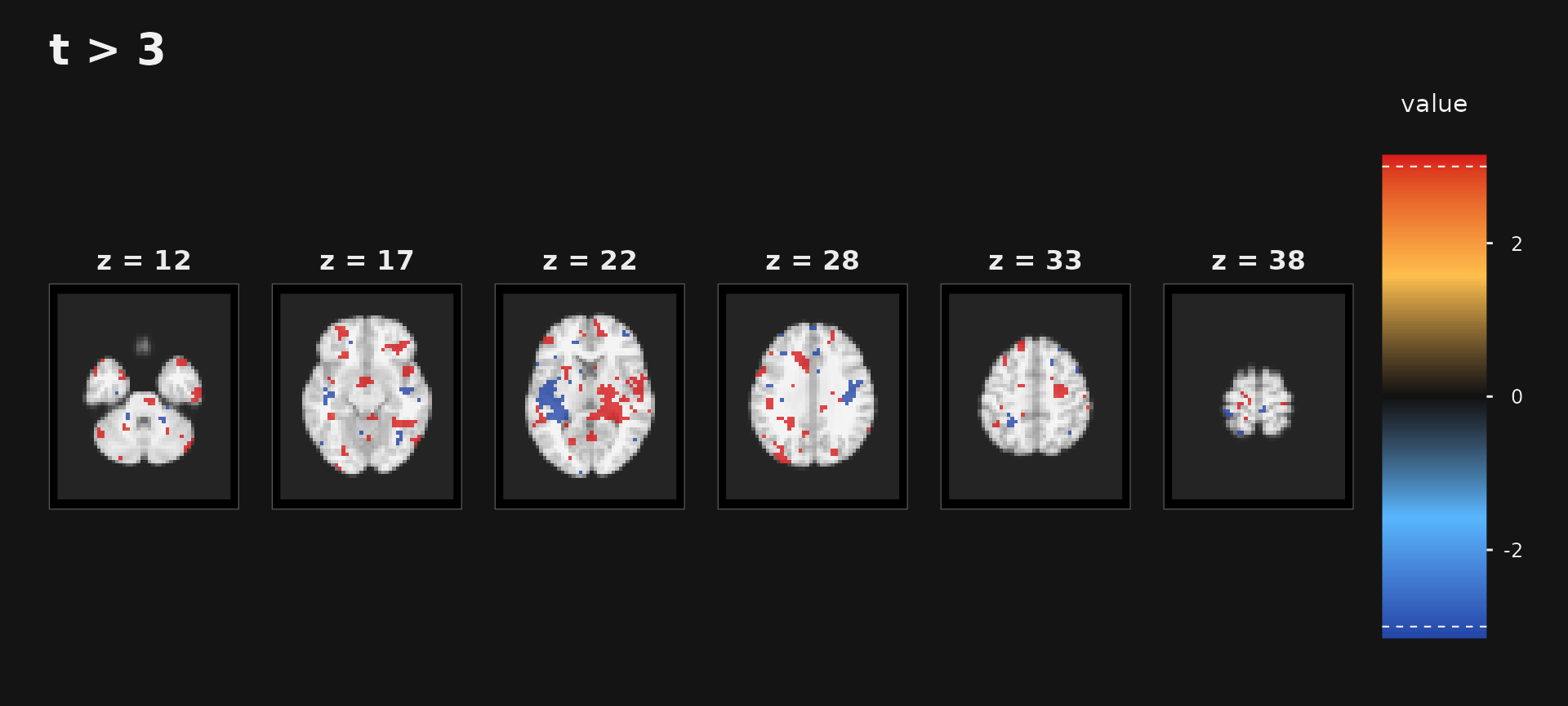

Six anatomical slices with blue and orange statistical clusters.

Thresholded signed t-map over the anatomy.

It is worth knowing how much survives the threshold — on a real map this is the first number a reviewer asks for:

a <- as.array(stat_map)
c(positive = sum(a > 3), negative = sum(a < -3), total_brain = sum(a != 0))
#>    positive    negative total_brain
#>        2056         874       28647

ov_symmetric = TRUE forces the colour scale to be centred on zero. Without it, an asymmetric map assigns different colours to +4 and -4, which is misleading with a diverging palette.

Cleaning up a noisy map

Unsmoothed statistical maps often look like salt and pepper. enhance_stat_map() despikes, smooths in an edge-preserving way, and then sharpens what survives, so clusters read clearly at figure size:

enhanced <- enhance_stat_map(stat_map)

raw <- as.array(stat_map)
enh <- as.array(enhanced)

# Judge the noise floor on voxels chosen from the RAW map, so both columns
# describe the same voxels rather than each map's own quiet region.
quiet <- which(as.vector(brain) & abs(raw) < 2)

round(rbind(
  raw = c(peak = max(raw), above_3 = sum(raw > 3), quiet_sd = sd(raw[quiet])),
  enhanced = c(max(enh), sum(enh > 3), sd(enh[quiet]))
), 3)
#>            peak above_3 quiet_sd
#> raw      12.414    2056    1.030
#> enhanced 16.005    4522    1.631

Read that table carefully, because it is the reason this is a display tool. The peak grows by about a third — and the spread of the quiet voxels grows by more. Enhancement amplifies the noise floor at least as hard as the signal, so the extra voxels clearing t > 3 are not new discoveries. Enhance for the figure; threshold and count on the original.

Choosing those quiet voxels from the raw map matters. Score each map on its own sub-threshold voxels and both come out near 1.0, because you are measuring a truncated sample rather than the noise floor.

plot_overlay() and plot_ortho() take enhance = TRUE to apply it inline.

Checking a registration

Two images on the same grid can be compared directly. plot_checkerboard() alternates tiles between them, so misalignment shows up as anatomy breaking across tile edges.

shifted <- demo_shifted(anat, by = 4L)

plot_checkerboard(anat, shifted,
  zlevels = zlevels[2:4], tile = 12, ncol = 3,
  cmap = anatomy_cmap, title = "Checkerboard QC", style = "dark"
)

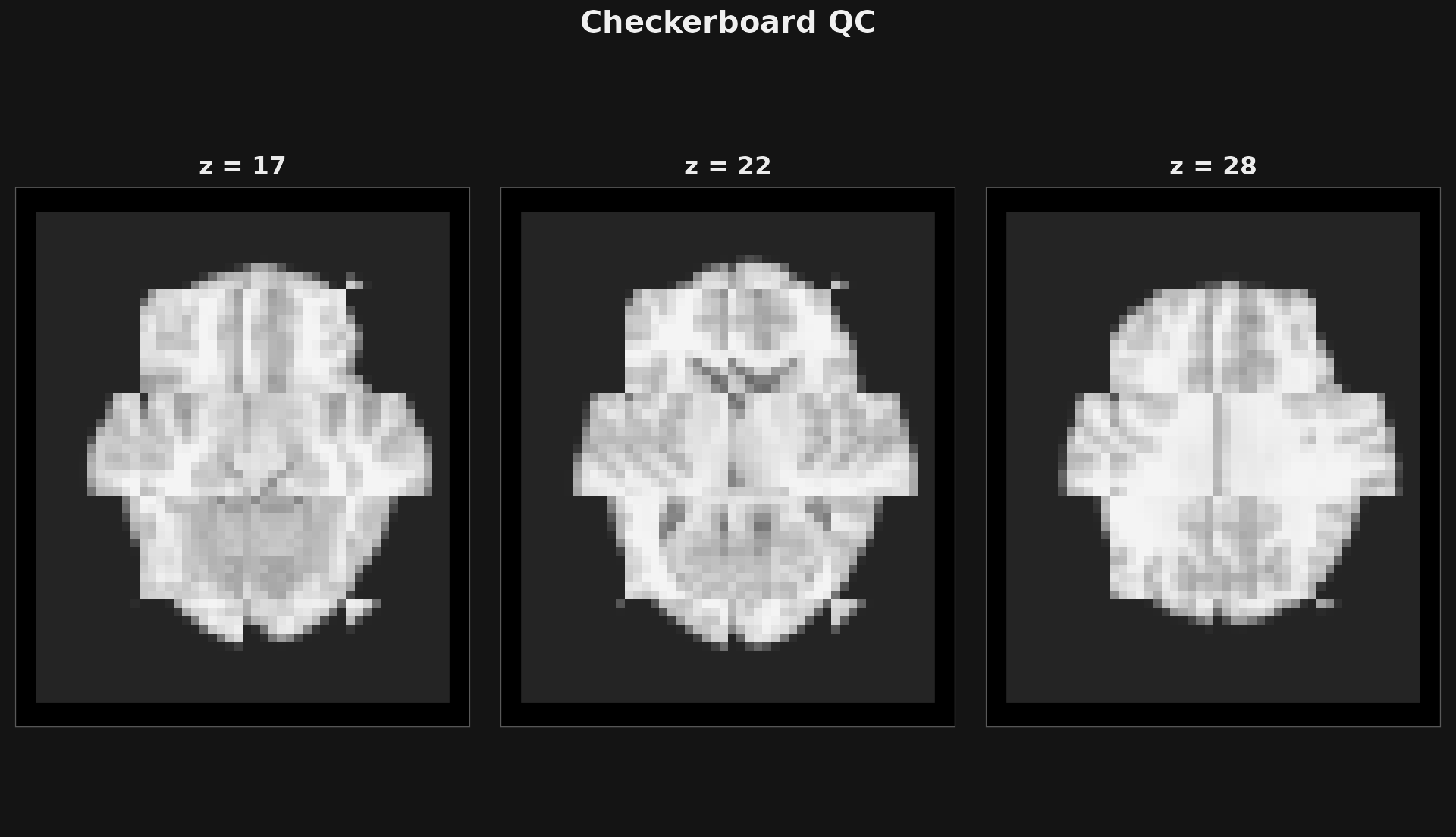

Three large checkerboard slices; brain structures are offset between alternating tiles.

Checkerboard against a copy shifted by four voxels. Anatomy steps across tile boundaries.

Checkerboards need room: at six panels across a page the tile steps are too small to see, so prefer a few large slices over many small ones.

plot_edge_overlay() compares boundaries instead, which is easier to judge when the two images have different contrast:

fixed_edges <- demo_edges(brain)
moving_edges <- demo_edges(demo_shifted(brain, by = 4L))

plot_edge_overlay(anat, fixed_edges, moving_edges,
  zlevels = zlevels, ncol = 6,
  bg_cmap = anatomy_cmap, title = "Edge overlay QC", style = "dark"
)

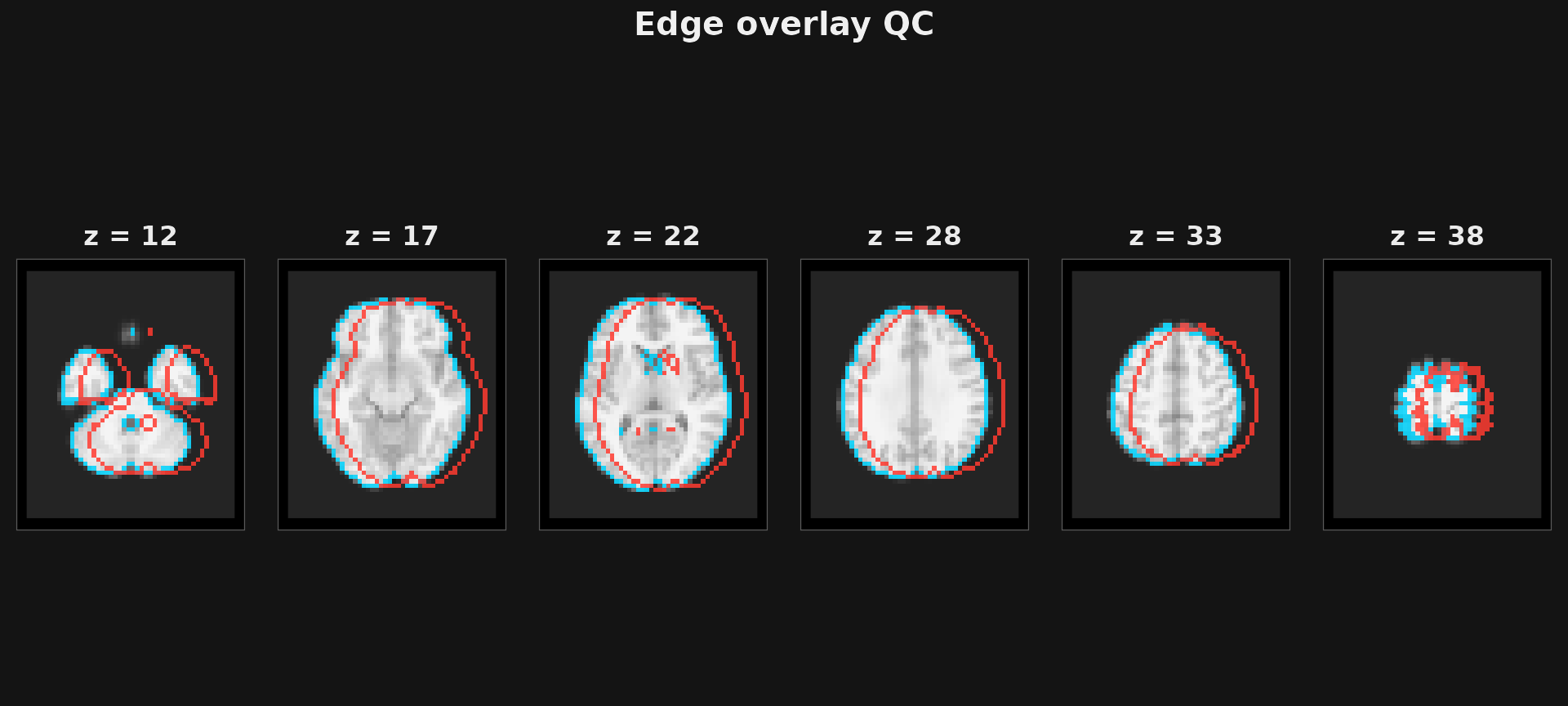

Edge overlay slices with two colours of outline separating.

Fixed and moving edge maps. Where the colours separate, the images disagree.

Both helpers require matching NeuroSpace objects and error otherwise. That is deliberate: a QC plot that silently resampled would hide the very problem you are looking for. Resample first — see vignette("resampling-and-orientation").

Colours

resolve_cmap() turns a palette name into colours, and mapToColors() maps data onto one. Together they cover the cases the helpers do not:

coldhot <- resolve_cmap("coldhot")
head(coldhot, 3)
#> [1] "#2446A7" "#2548A9" "#264AAA"

probe <- c(-4, -1, 0, 1, 4)
mapToColors(probe, col = coldhot, irange = c(-4, 4))
#> [1] "#2446A7"   "#3A5F7F"   "#00000000" "#7D602F"   "#D7191B"

Positive values come back warm, negative cold, and zero is transparent. Two arguments control the blanking and they are not interchangeable: zero_col recolours exactly-zero voxels, while threshold takes a two-element band and blanks everything inside it to transparent regardless of zero_col.

mapToColors(probe, col = coldhot, irange = c(-4, 4), zero_col = "#00FF00")
#> [1] "#2446A7" "#3A5F7F" "#00FF00" "#7D602F" "#D7191B"
mapToColors(probe, col = coldhot, irange = c(-4, 4), threshold = c(-2, 2))
#> [1] "#2446A7"   "#00000000" "#00000000" "#00000000" "#D7191B"

A scalar threshold errors, so pass both ends. Note also irange: left at its default it spans the data, which for an asymmetric map puts zero off-centre — the same trap ov_symmetric exists to avoid.

A palette is a plain character vector, so any vector of colours works: the anatomy_cmap used throughout this article is three greys.

Which helper?

Task Helper
Quick look at one volume plot(), as used in the tour
Publication slice grid plot_montage()
One location in three planes plot_ortho()
Statistic or mask over anatomy plot_overlay()
Registration, two images plot_checkerboard()
Registration, two edge maps plot_edge_overlay()
Tidy a noisy map for display enhance_stat_map()
Consistent styling for your own ggplots theme_neuro()

Four habits worth keeping: range = "robust" for anatomy, ov_symmetric = TRUE for signed maps, style = "dark" to inspect and "light" to publish, and draw = FALSE whenever you want to arrange panels yourself.
