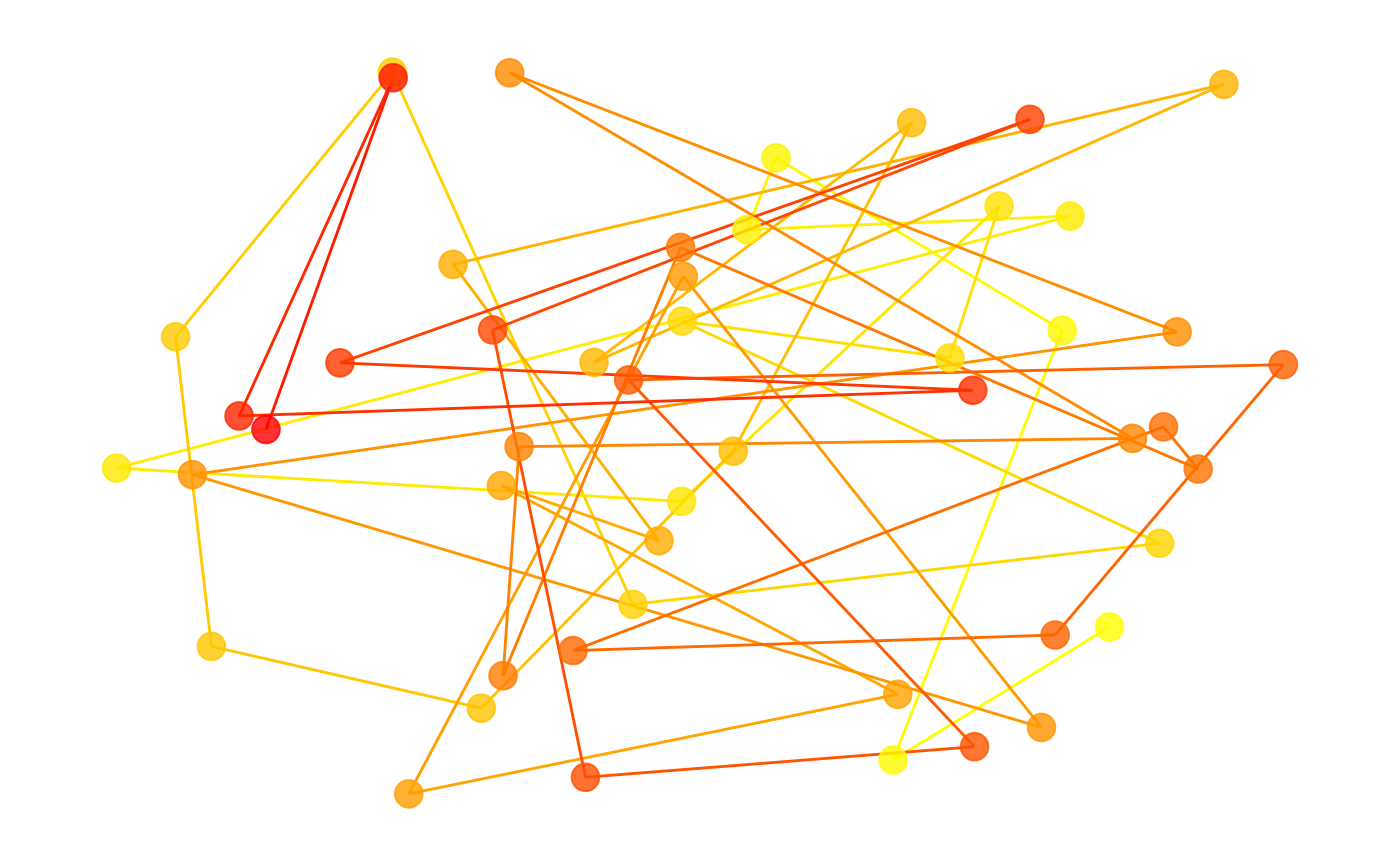

Plots a fixation group in stimulus coordinates with the shared eyesim style. `type = "points"` draws the scanpath: fixations coloured by onset and sized by duration, joined in order. The density types draw a kernel density of the fixations on the eyesim density scale, with the fixations overlaid in grey. The plot keeps a 1:1 aspect ratio; `xlim`/`ylim` set the visible extent (and the extent of `bg_image`) without dropping data. A ring marks the first fixation.
Usage
# S3 method for class 'fixation_group'
plot(
x,
type = c("points", "contour", "filled_contour", "density", "raster"),
bandwidth = 60,
xlim = range(x$x),
ylim = range(x$y),
size_points = TRUE,
show_points = TRUE,
show_path = TRUE,
bins = max(as.integer(length(x$x)/10), 4),
bg_image = NULL,
colours = NULL,
alpha_range = c(0, 0.9),
alpha = 0.8,
window = NULL,
transform = c("identity", "sqroot", "curoot", "rank"),
legend = TRUE,
limits = NULL,
aspect = c("equal", "free"),
...
)Arguments
- x
A fixation_group object.
- type
The type of plot to display (default: c("points", "contour", "filled_contour", "density", "raster")).
- bandwidth
The bandwidth for the kernel density estimator (default: 60).
- xlim
The x-axis limits (default: range of x values in the fixation_group object).
- ylim
The y-axis limits (default: range of y values in the fixation_group object).
- size_points
Whether to size points according to fixation duration; point area is proportional to duration (default: TRUE).
- show_points
Whether to show the fixations as points (default: TRUE).
- show_path
Whether to show the fixation path (default: TRUE).
- bins
Number of density bands for `type = "density"` (default: max(as.integer(length(x$x)/10), 4)); `type = "filled_contour"` uses 10 bands.
- bg_image
An optional background image file name (or `cimg`).
- colours
Optional colour ramp. For `type = "points"` it replaces the onset (time) ramp; for the density types it replaces the density ramp. Default `NULL` uses the eyesim ramps.
- alpha_range
Opacity at zero and at maximum density for the density layers (default: c(0, 0.9), so zero density is transparent).
- alpha
The opacity level for the points (default: 0.8).
- window
A vector specifying the time window for selecting fixations (default: NULL).
- transform
The transformation applied to the density colour scale (default: c("identity", "sqroot", "curoot", "rank")).
- legend
Whether to show legends: onset (points) or density (density types), plus duration when `size_points = TRUE` (default: `TRUE`).
- limits
Optional density limits for the colour scale of the density types (default: from zero to the maximum). Use the same `limits` across plots to compare them on one scale; for the banded types they also fix the band edges. Densities above the upper limit take the top colour.
- aspect
`"equal"` (default) keeps one data unit the same length on both axes, so saccade angles and cluster shapes are true; wide scanpaths then leave blank space. `"free"` fills the panel and distorts the geometry.
- ...
Additional arguments (currently unused).
Details
Fixations are numbered and joined in onset order, whatever the row order. With fewer than 50 fixations, the numbers are placed when the plot is drawn, using its actual size: next to their own fixation, or further out with a leader line that stays clear of every other fixation, never covering another number or marker. Fixations whose markers overlap are outlined as a group with one label listing their numbers. Any number still without a position is listed in a note inside the panel (or counted, if more than six).
`type = "density"` and `type = "filled_contour"` draw non-overlapping density bands between evenly spaced edges from zero, each coloured at its midpoint; the band containing zero is transparent, and the stepped colour bar shows the same edges. Over a `bg_image`, thin white contour lines separate the density from the stimulus colours.
See also
Other visualization:
anim_scanpath(),
element_text_wrap(),
eyesim_colours(),
plot.eye_density(),
scale_fill_eyesim_density(),
theme_eyesim()
