ggplot2 theme for fmridesign plots

Source: R/plot_theme.R
theme_fmridesign.Rd

A restrained theme: left-aligned titles, recessive grid, no panel border, and small uppercase-free strip labels. All plotting methods in the package use it; add it to your own plots to match.

Usage

theme_fmridesign(
  base_size = getOption("fmridesign.base_size", getOption("neuro.base_size", 11)),
  base_family = getOption("fmridesign.base_family", getOption("neuro.base_family", ""))
)

Arguments

base_size

Base font size in points. Defaults to the option fmridesign.base_size, then the shared neuro.base_size, then 11, so a host application can set the size of every figure at once.

base_family

Base font family. Defaults to the option fmridesign.base_family, then neuro.base_family, then "" (the device's default sans).

Value

A ggplot2 theme object.

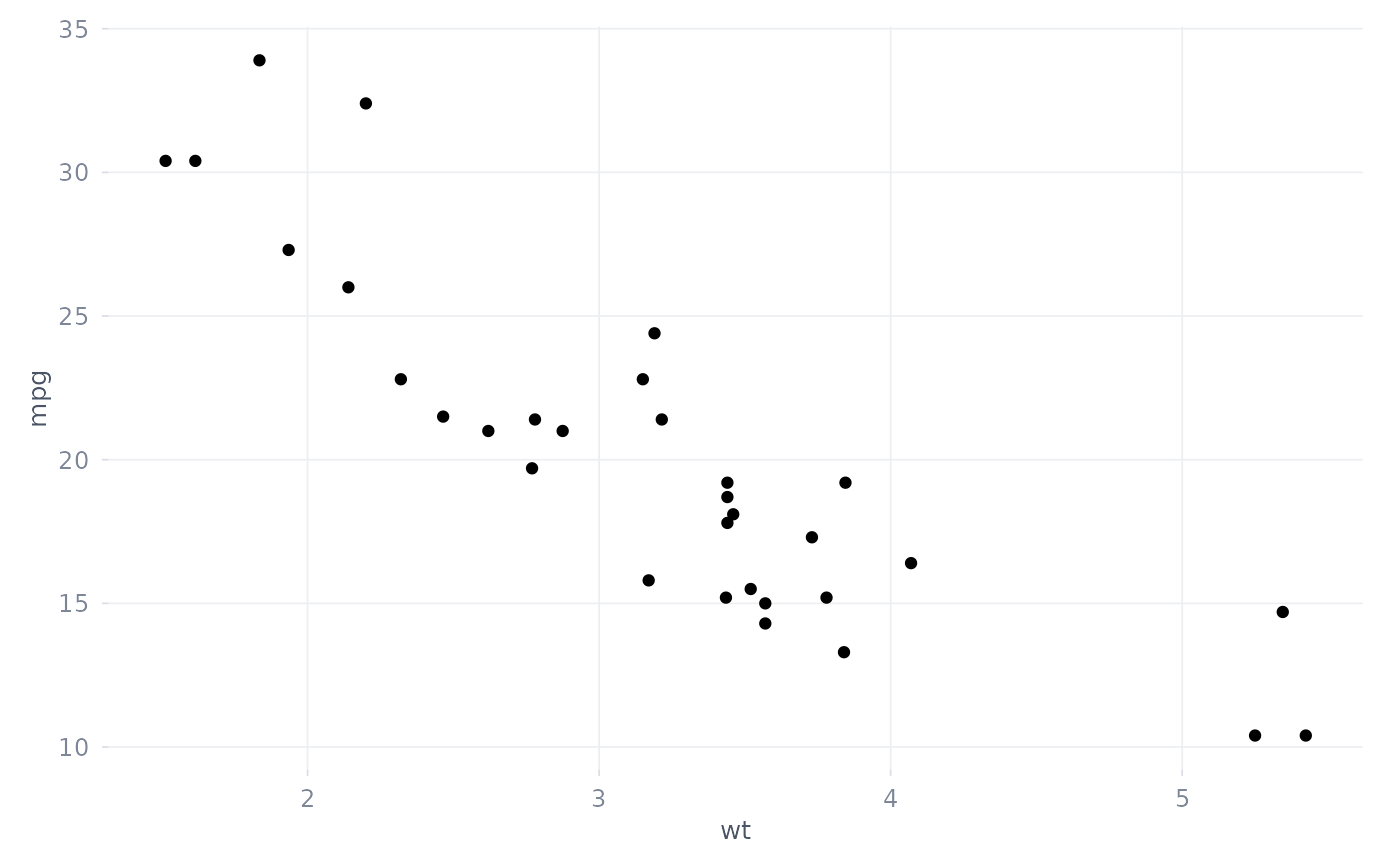

Examples

if (requireNamespace("ggplot2", quietly = TRUE)) {
  ggplot2::ggplot(mtcars, ggplot2::aes(wt, mpg)) +
    ggplot2::geom_point() +
    theme_fmridesign()
}
