Introduction to fmridesign

library(fmridesign)
library(ggplot2)

Overview

The fmridesign package constructs design matrices for fMRI general linear model (GLM) analysis. It provides a formula-based interface for specifying event-related designs with flexible hemodynamic response functions, parametric modulators, and baseline/nuisance regressors.

The package separates task-related regressors (event models) from baseline regressors (drift, intercepts, motion), provides informative column names, and includes visualization tools for quality control.

The fMRI Design Matrix

In fMRI analysis, the design matrix (X) is fundamental to the general linear model:

Y = Xβ + ε

Where: - Y: Observed BOLD signal time series - X: Design matrix containing predictors - β: Parameter estimates (regression coefficients) - ε: Error term (noise)

The design matrix typically combines task-related predictors (expected responses to events) and nuisance predictors (drift, motion, physiology). Both are essential for reliable inference.

Package Architecture

The package uses two main components:

Event models (event_model()) specify task-related regressors. You provide onset times, event types, and optional durations. Each term can use a different HRF basis function. The model supports factorial designs, parametric modulators, and trial-specific covariates.

Baseline models (baseline_model()) specify nuisance regressors. You can add polynomial or spline drift terms, block-wise intercepts, and any additional nuisance regressors (motion, physiological noise, etc.).

Quick Start: Complete Workflow

Here’s a minimal example demonstrating the complete workflow from experimental design to design matrix:

# 1. Define the temporal structure (2 runs, 150 scans each, TR = 2s)
TR <- 2
sframe <- sampling_frame(blocklens = c(150, 150), TR = TR)

# 2. Create experimental events
set.seed(123)
# Simple two-condition design with 20 events per run
conditions <- rep(c("A", "B"), each = 10, times = 2)
onsets <- c(
  sort(runif(20, 0, 150 * TR - 10)),  # Run 1
  sort(runif(20, 0, 150 * TR - 10))   # Run 2
)
blockids <- rep(1:2, each = 20)

# 3. Build the event model
emodel <- event_model(
  onset ~ hrf(Condition, basis = "spmg1"),
  data = data.frame(
    onset = onsets,
    Condition = factor(conditions),
    block = factor(blockids)
  ),
  block = ~ block,
  sampling_frame = sframe
)

# 4. Build the baseline model
bmodel <- baseline_model(
  basis = "poly",
  degree = 3,
  sframe = sframe
)

# 5. Extract design matrices
X_task <- design_matrix(emodel)
X_baseline <- design_matrix(bmodel)

# 6. Combine into full design matrix
X_full <- cbind(X_task, X_baseline)
dim(X_full)
#> [1] 300  10

# 7. Visualize the complete design
plot(emodel)

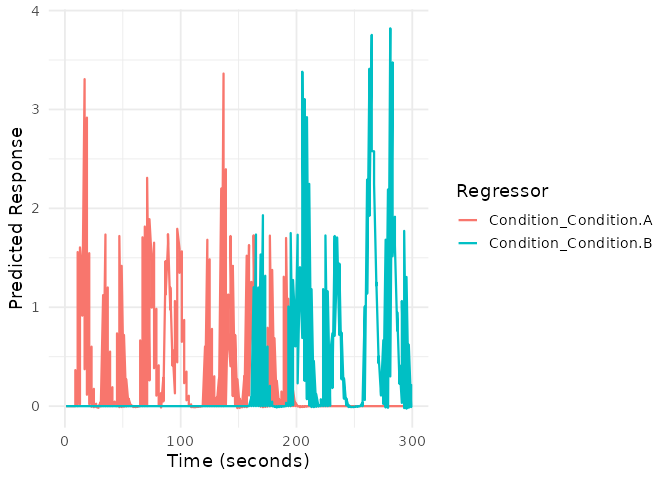

Predicted BOLD regressors over time for an example event model (two runs).

Understanding the Components

Sampling Frame

The sampling_frame object defines the temporal structure of your fMRI data:

# Single run: 200 scans, TR = 2 seconds
sframe_single <- sampling_frame(blocklens = 200, TR = 2)
print(sframe_single)
#> Sampling frame
#> - Blocks: 1
#> - Scans: 200 (per block: 200 )
#> - TR: 2 s
#> - Duration: 399 s

# Multiple runs: 3 runs with different lengths
sframe_multi <- sampling_frame(blocklens = c(150, 200, 150), TR = 2)
print(sframe_multi)
#> Sampling frame
#> - Blocks: 3
#> - Scans: 500 (per block: 150, 200, 150 )
#> - TR: 2 s
#> - Duration: 999 s

Event Specification

Events are typically specified with the formula interface:

# Formula interface (recommended)
emodel_formula <- event_model(
  onset ~ hrf(condition) + hrf(RT, basis = "gaussian"),
  data = data.frame(
    onset = c(10, 30, 50, 70),
    condition = factor(c("easy", "hard", "easy", "hard")),
    RT = c(0.5, 0.8, 0.4, 0.9),
    block = factor(c(1, 1, 1, 1))
  ),
  block = ~ block,
  sampling_frame = sampling_frame(100, TR = 2)
)

Common Use Cases

1. Block Design

# Block design with 20-second blocks
block_onsets <- seq(0, 280, by = 40)
block_conditions <- rep(c("task", "rest"), length.out = length(block_onsets))
block_durations <- rep(20, length(block_onsets))

emodel_block <- event_model(
  onset ~ hrf(condition),
  data = data.frame(
    onset = block_onsets,
    condition = factor(block_conditions),
    block = factor(rep(1, length(block_onsets)))
  ),
  block = ~ block,
  durations = block_durations,
  sampling_frame = sampling_frame(150, TR = 2)
)

plot(emodel_block)

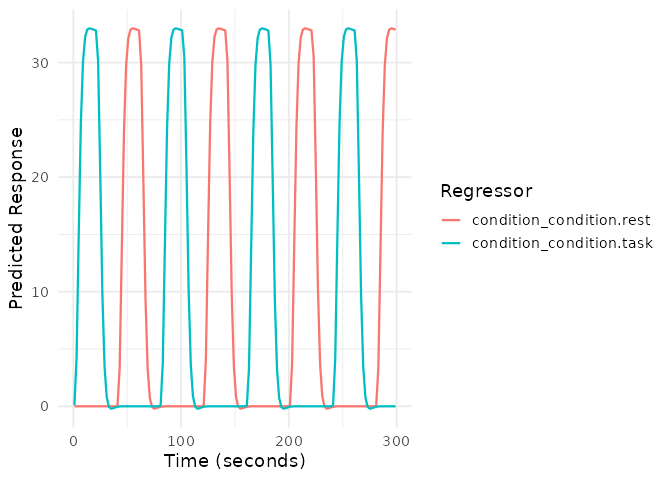

Block design regressors (task and rest blocks) over time.

# Rapid event-related with jittered ISI
set.seed(456)
n_events <- 60
rapid_onsets <- cumsum(runif(n_events, 2, 6))  # ISI between 2-6s
rapid_conditions <- sample(c("face", "house", "object"), n_events, replace = TRUE)

emodel_rapid <- event_model(
  onset ~ hrf(stimulus),
  data = data.frame(
    onset = rapid_onsets,
    stimulus = factor(rapid_conditions),
    block = factor(rep(1, n_events))
  ),
  block = ~ block,
  sampling_frame = sampling_frame(ceiling(max(rapid_onsets)/2) + 20, TR = 2)
)

# Check design efficiency
cor(design_matrix(emodel_rapid))
#>                          stimulus_stimulus.face stimulus_stimulus.house
#> stimulus_stimulus.face                1.0000000             -0.29766943
#> stimulus_stimulus.house              -0.2976694              1.00000000
#> stimulus_stimulus.object             -0.3687703             -0.09145211
#>                          stimulus_stimulus.object
#> stimulus_stimulus.face                -0.36877029
#> stimulus_stimulus.house               -0.09145211
#> stimulus_stimulus.object               1.00000000

3. Parametric Modulation

# Event-related design with RT modulation
set.seed(789)
n_trials <- 30
pm_onsets <- sort(runif(n_trials, 0, 200))
pm_conditions <- rep(c("congruent", "incongruent"), length.out = n_trials)
pm_RT <- rnorm(n_trials, mean = ifelse(pm_conditions == "congruent", 0.5, 0.7), sd = 0.1)

emodel_parametric <- event_model(
  onset ~ hrf(condition) + hrf(RT),
  data = data.frame(
    onset = pm_onsets,
    condition = factor(pm_conditions),
    RT = scale(pm_RT)[,1],  # Center the parametric modulator
    block = factor(rep(1, n_trials))
  ),
  block = ~ block,
  sampling_frame = sampling_frame(120, TR = 2)
)

# Visualize the parametric modulator
plot(emodel_parametric, term_name = "RT")

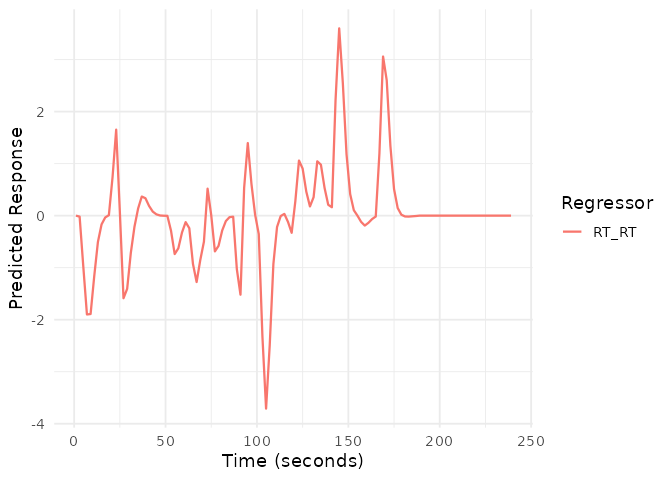

Parametric modulator (RT) regressor and conditions plotted over time.

Integration with fMRI Analysis

The design matrices created by fmridesign can be used with various fMRI analysis approaches:

# Example: Export for use with external software
X <- cbind(design_matrix(emodel), design_matrix(bmodel))

# Save as text file for SPM, FSL, or AFNI
write.table(X, "design_matrix.txt", row.names = FALSE, col.names = TRUE)

# For use with R-based analysis
# Assuming Y is your fMRI time series data
# fit <- lm(Y ~ X - 1)  # -1 removes intercept as it's in the design

# Or use with specialized fMRI packages
# library(fmri)
# results <- fmri_glm(Y, X)

Best Practices

Inspect your design matrices visually. Check that event timing is correct, HRF shapes are reasonable, and correlations between regressors are acceptable.

Optimize design efficiency. Use jittered inter-stimulus intervals and balanced event types when possible.

Match drift models to run length. Short runs (< 5 minutes) need fewer drift terms than long runs.

Include nuisance regressors. Add motion parameters, physiological noise, and artifact flags to your baseline model.

Next Steps

For more detailed information, see the following vignettes:

vignette("a_03_baseline_model"): In-depth coverage of baseline and nuisance modeling
vignette("a_04_event_models"): Comprehensive guide to event model specification
Visit the fmrihrf package documentation for HRF details

Getting Help

If you encounter issues or have questions:

Check the function documentation: ?event_model, ?baseline_model
Browse all available HRFs: list_available_hrfs()
Report issues: GitHub Issues
