Plot a Baseline Model — plot.baseline

Draws every time-varying term of a baseline (nuisance) model on a shared time axis: one panel per term, with thin rules at run boundaries and run labels along the top. Lines never connect across run boundaries.

Usage

# S3 method for class 'baseline_model'
plot(
  x,
  term_name = NULL,
  title = NULL,
  xlab = NULL,
  ylab = NULL,
  line_size = 0.5,
  color_palette = NULL,
  block_x = c("global", "run"),
  drift_scale = c("raw", "unit"),
  subtitle = NULL,
  ...
)

Arguments

x: A baseline_model object.
term_name: Optional name of a single term to plot (one of names(terms(x)), e.g. "drift", "block" or "nuisance"). An exact match is used if there is one; otherwise a unique case-insensitive partial match. Constant terms can be requested this way. If NULL (the default), all non-constant terms are drawn.
title: Plot title. Defaults to "Baseline model".
xlab: Label for the x-axis. Defaults to a time label with units.
ylab: Label for the y-axis. By default "Regressor value", or no y title when motion parameters are split into translation and rotation panels (their units differ; the panel titles name them).
line_size: Line width in mm (default 0.5).
color_palette: Ignored; retained for backward compatibility. Colours follow the package palette (see fmridesign_palette()).
block_x: How to lay out runs on the x-axis: "global" (default) concatenates runs on one time axis; "run" gives each run its own column of panels with run-relative time.
drift_scale: "raw" (default) plots drift columns as they enter the design matrix. "unit" divides each drift column by its peak absolute value within its run so basis shapes can be compared; the caption then reports the raw peaks and flags near-flat columns.
subtitle: Plot subtitle. Defaults to a summary of the model (drift basis and size, nuisance regressors per run, runs, scans and TR).
...: Additional arguments passed to ggplot2::geom_line().

Value

A ggplot2 object.

Details

Drift basis functions share one ordered colour ramp (darkest = first basis function), so a basis function keeps its colour in every run. Nuisance regressors keep the column names you supplied. When those names look like rigid-body motion parameters (tx/ty/tz and rx/ry/rz, trans_x/rot_x, x/y/z and pitch/roll/yaw), translations and rotations get separate panels, because they are usually in different units and rotations look flat on a shared axis. Each panel carries a key at its right edge in column order; panels with more than 7 series use a legend instead.

Terms that are constant within every run (run intercepts, a global intercept, a constant drift basis) carry no time course and are left out; the caption lists what was omitted. Request one explicitly with term_name to draw it anyway. For spline and polynomial drift the caption also gives a rough equivalent high-pass period, 2 * run duration / k for k drift columns per run (the cutoff a discrete cosine basis with k regressors would have); treat it as a guide, not an exact filter.

Examples

sframe <- fmrihrf::sampling_frame(blocklens = c(40, 40), TR = 2)
nuis <- lapply(1:2, function(r) {
  m <- matrix(cumsum(rnorm(160, sd = 0.1)), 40, 4)
  colnames(m) <- c("tx", "ty", "rx", "ry")
  m
})
bmod <- baseline_model(basis = "bs", degree = 4, sframe = sframe,
                       nuisance_list = nuis)

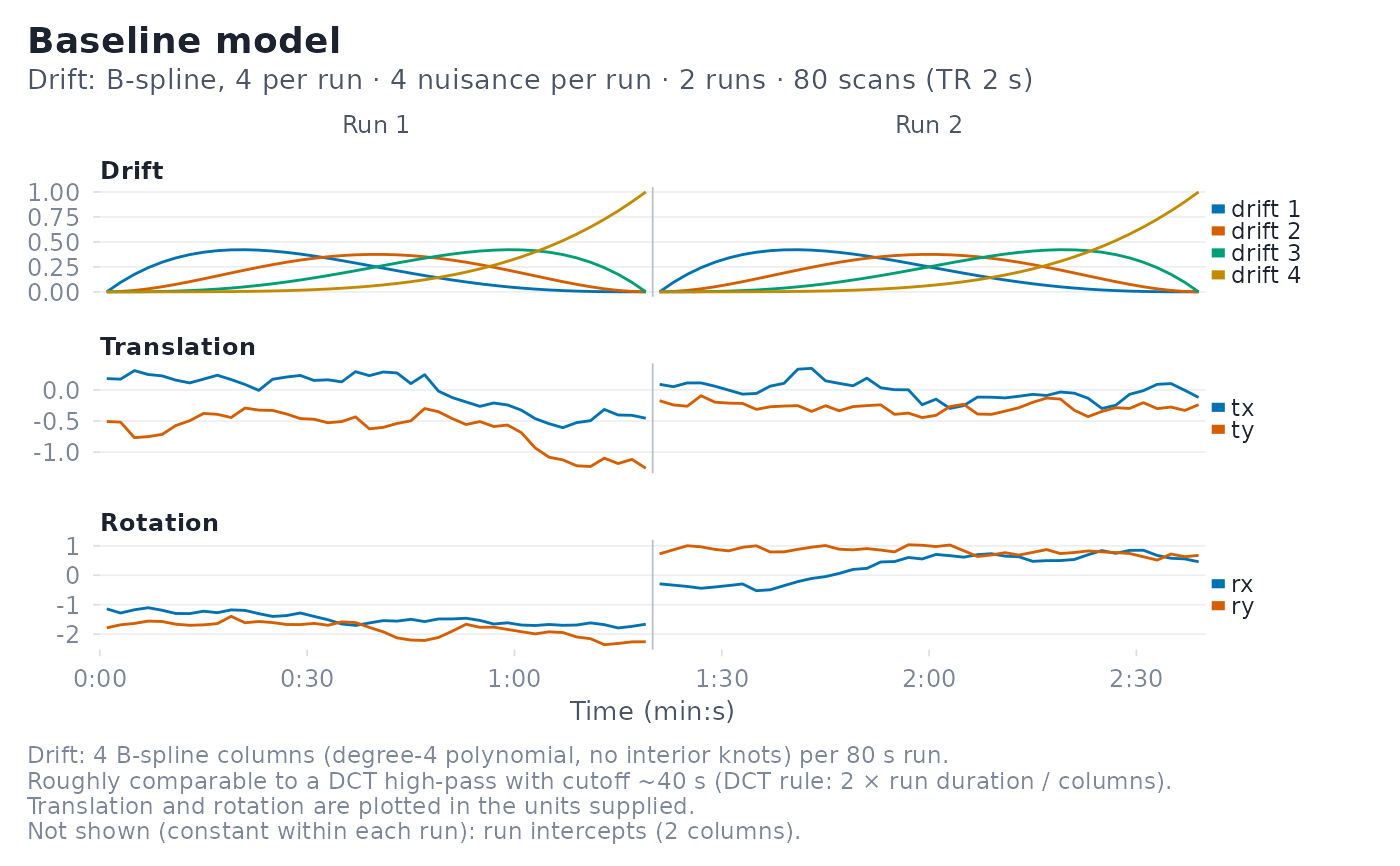

plot(bmod)

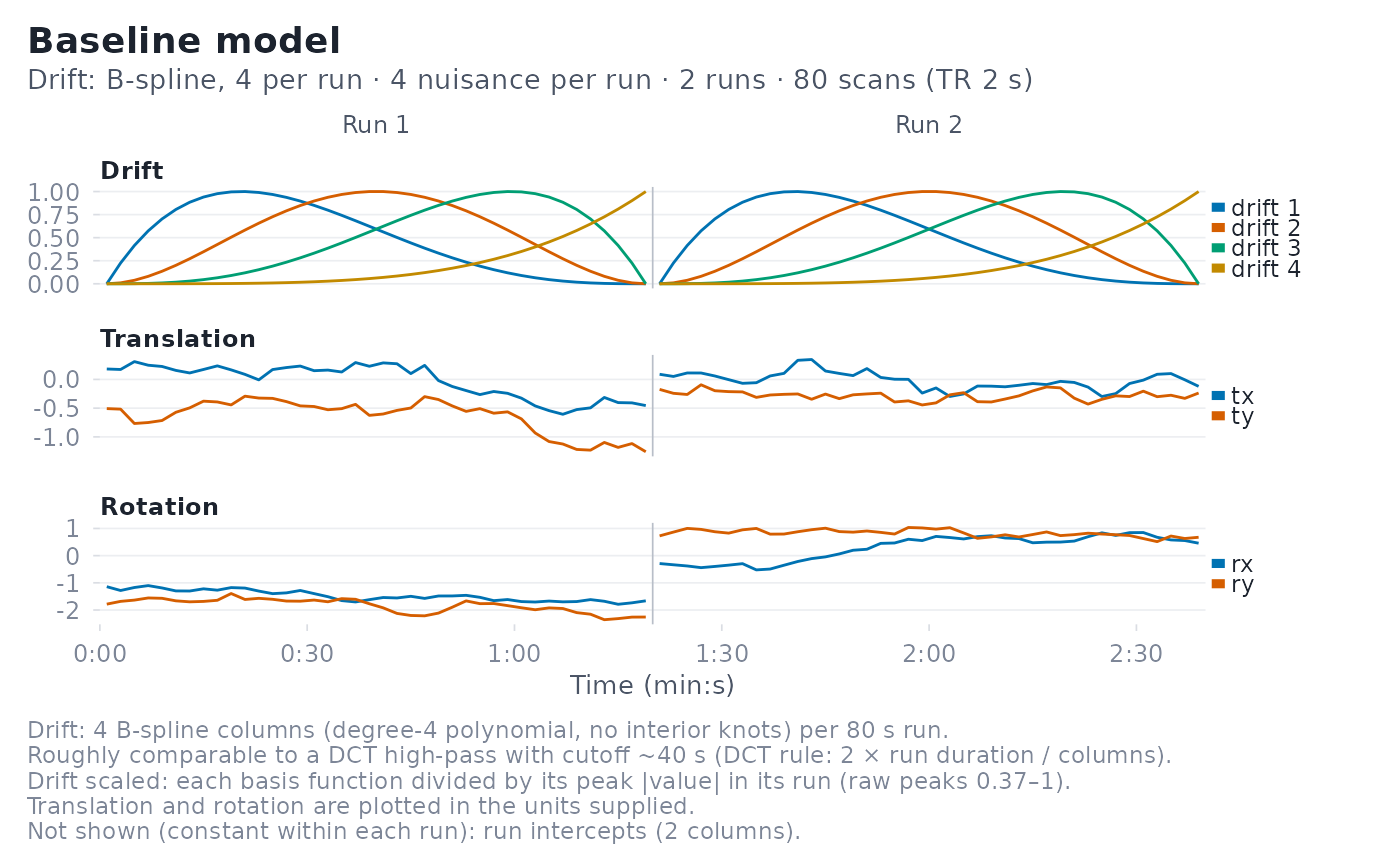

plot(bmod, drift_scale = "unit")

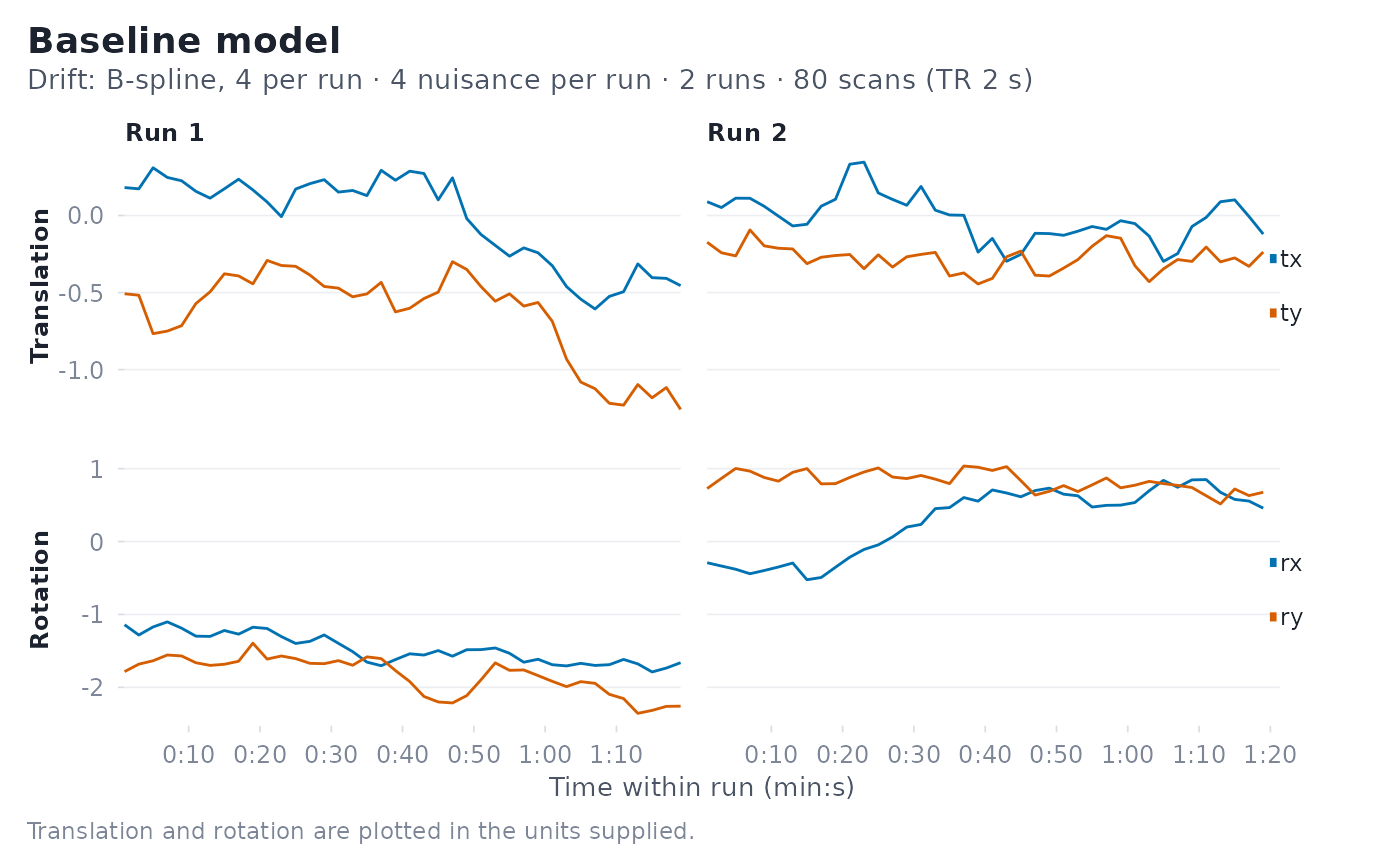

plot(bmod, term_name = "nuisance", block_x = "run")
