The problem: from points to a graph

Many methods in machine learning, spatial analysis, and network science share a common first step: how similar is each data point to its neighbors? The answer is an adjacency matrix — an n×n sparse matrix where entry (i, j) holds the similarity between points i and j, and off-neighbor entries are zero.

adjoin constructs these matrices from three kinds of inputs:

  • Feature data (numeric matrices) — via k-nearest neighbor graphs
  • Spatial coordinates — via radius- or grid-based adjacency
  • Class labels (factors) — via within-class connectivity

The output is always a neighbor_graph, a lightweight object that exposes a consistent interface for extracting the adjacency matrix, computing the graph Laplacian, and inspecting edges.

Your first graph

The easiest entry point is graph_weights(). Give it a data matrix, a neighborhood size k, and a weight mode, and it returns a ready-to-use neighbor_graph.

set.seed(42)
X  <- as.matrix(iris[, 1:4])          # 150 flowers × 4 measurements
ng <- graph_weights(X, k = 5,
                    neighbor_mode = "knn",
                    weight_mode   = "heat")
A  <- adjacency(ng)                    # sparse 150×150 similarity matrix
cat("nodes:", nvertices(ng), " | edges:", nnzero(A) / 2, "\n")
#> nodes: 150  | edges: 508.5

graph_weights() searched for the 5 nearest Euclidean neighbors of each flower, converted distances to similarities with a heat kernel (exp(−d²/2σ²)), then symmetrized the result. The adjacency matrix is stored as a sparse Matrix — most of its 22,500 entries are zero.

Adjacency matrix reordered by species. The three diagonal blocks show that flowers connect mostly within their own species.

Adjacency matrix reordered by species. The three diagonal blocks show that flowers connect mostly within their own species.

The three diagonal blocks confirm that the graph is recovering species structure from raw petal and sepal measurements — no labels required.

The core workflow

Every feature-similarity graph follows the same three-step pipeline.

Step 1 — Prepare data. Rows are observations; columns are features.

X <- as.matrix(iris[, 1:4])
dim(X)
#> [1] 150   4

Step 2 — Build the graph. Pass the matrix to graph_weights().

ng <- graph_weights(X, k = 5, weight_mode = "heat", sigma = 0.5)

Step 3 — Use the graph. Extract what downstream methods need.

A      <- adjacency(ng)                  # sparse similarity matrix
L      <- laplacian(ng)                  # L = D − A
L_norm <- laplacian(ng, normalized = TRUE)  # I − D^{-1/2} A D^{-1/2}

The Laplacian is the backbone of spectral clustering, diffusion maps, and graph-regularized learning. Both the unnormalized and symmetric-normalized forms are available directly.

Inside a neighbor_graph

A neighbor_graph is a named list:

names(ng)
#> [1] "G"      "params"
str(ng$params, max.level = 1)
#> List of 6
#>  $ k            : num 5
#>  $ neighbor_mode: chr "knn"
#>  $ weight_mode  : chr "heat"
#>  $ sigma        : num 0.5
#>  $ type         : chr "normal"
#>  $ labels       : NULL
  • $G — an igraph object holding the full topology
  • $params — the construction parameters, kept for reproducibility

Three accessors cover the most common needs:

nvertices(ng)      # number of nodes
#> [1] 150
head(edges(ng))    # edge list as a character matrix
#>      [,1] [,2]
#> [1,] "1"  "5"
#> [2,] "1"  "8"
#> [3,] "1"  "18"
#> [4,] "1"  "28"
#> [5,] "1"  "29"
#> [6,] "1"  "38"

Choosing a weight mode

The weight_mode argument maps Euclidean distances to similarity scores.

Mode Similarity Best for
"heat" exp(−d²/2σ²) General purpose; default
"binary" 1 for every neighbor Unweighted structural analysis
"cosine" dot product after L2 norm Direction matters, not magnitude
"normalized" correlation-like Zero-mean, unit-variance features
ng_norm <- graph_weights(X, k = 5, weight_mode = "normalized")
ng_cos  <- graph_weights(X, k = 5, weight_mode = "cosine")
ng_heat <- graph_weights(X, k = 5, weight_mode = "heat", sigma = 0.5)
Edge weight distributions for three weight modes. All three spread similarity scores continuously across (0, 1].

Edge weight distributions for three weight modes. All three spread similarity scores continuously across (0, 1].

Soft weights preserve the degree of similarity, not just its presence — nearby neighbors score near 1, distant ones near 0. The "binary" mode (not shown) produces unweighted graphs where every neighbor gets weight 1.

Controlling symmetry

By default, if either point nominated the other as a neighbor the edge is included (type = "normal", union). Two alternatives trade off sparsity and confidence:

# mutual: both must nominate each other (sparser, higher confidence)
ng_mutual <- graph_weights(X, k = 5, weight_mode = "heat",
                           type = "mutual")

# asym: directed — i→j does not imply j→i
ng_asym   <- graph_weights(X, k = 5, weight_mode = "heat",
                           type = "asym")

# edge counts: normal ≥ mutual
c(normal = nnzero(adjacency(ng))       / 2,
  mutual = nnzero(adjacency(ng_mutual)) / 2)
#> normal mutual
#>  508.5  241.5

Mutual graphs are useful when false positives are costly — for example, selecting a reliable training neighborhood for a classifier.

The nnsearcher: reusable search index

For repeated queries, build an nnsearcher index once and query it as many times as needed.

searcher <- nnsearcher(X, labels = iris$Species)

Find neighbors for every point:

nn_result <- find_nn(searcher, k = 5)
names(nn_result)   # indices, distances, labels
#> [1] "labels"    "indices"   "distances"

Search within a subset (e.g., setosa flowers only):

nn_setosa <- find_nn_among(searcher, k = 3, idx = 1:50)

Search between two groups (setosa vs. versicolor):

nn_cross <- find_nn_between(searcher, k = 3, idx1 = 1:50, idx2 = 51:100)

Build a neighbor_graph from the index:

ng2 <- neighbor_graph(searcher, k = 5, transform = "heat", sigma = 0.5)

The two-step approach is useful when you need to inspect raw distances before committing to a kernel, or when you want to reuse the index across multiple graph configurations.

Class-based graphs

When class labels are available, class_graph() connects every pair of same-class points — creating a fully connected block structure.

cg <- class_graph(iris$Species)
nclasses(cg)
#> [1] 3

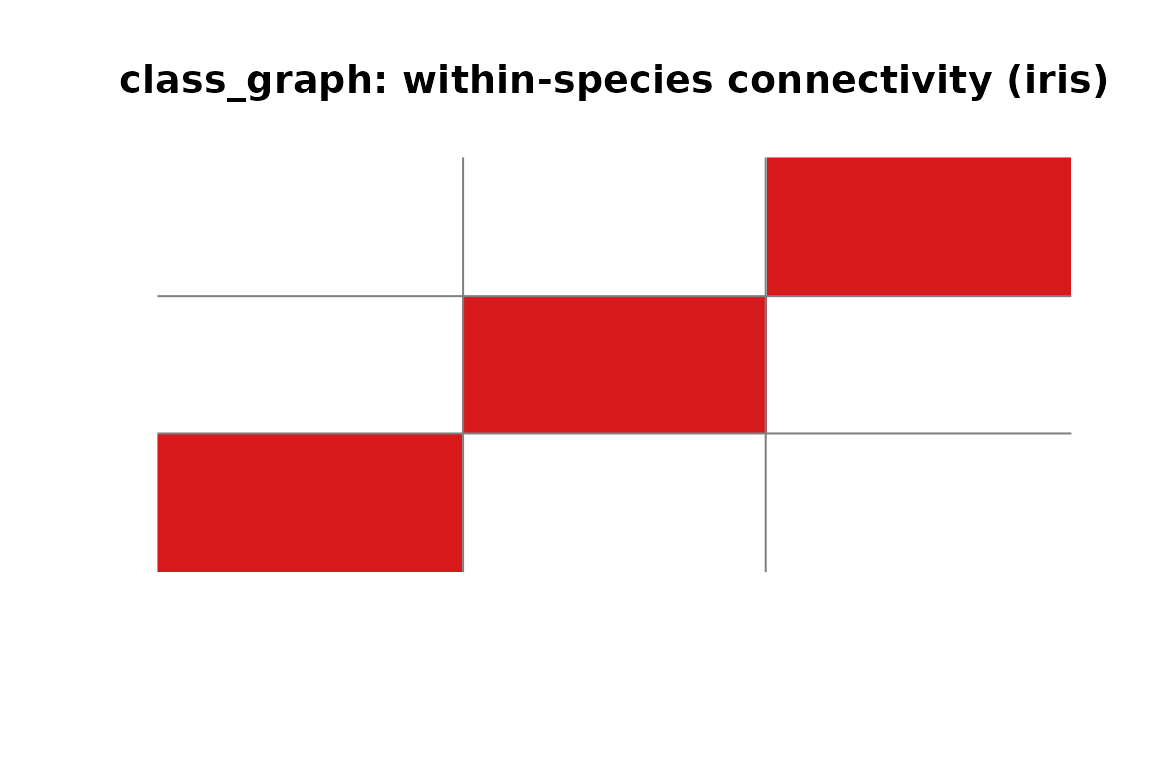

class_graph adjacency for iris. Each block is a fully connected class; no edges cross species boundaries.

class_graph adjacency for iris. Each block is a fully connected class; no edges cross species boundaries.

class_graph objects are neighbor_graph subclasses — every accessor (adjacency(), laplacian(), edges()) works on them too. They also support class-specific queries:

# within-class neighbors for every point
wc <- within_class_neighbors(cg, X, k = 3)

# nearest between-class neighbors for every point
bc <- between_class_neighbors(cg, X, k = 3)

This is the building block for supervised dimensionality reduction methods like LDA and neighborhood component analysis.

Cross-graph similarity

To connect two different datasets, use cross_adjacency():

X_ref   <- as.matrix(iris[1:100,  1:4])   # 100 reference points
X_query <- as.matrix(iris[101:150, 1:4])  # 50 query points

# 50×100 sparse matrix: row i = query flower, col j = nearest reference
C <- cross_adjacency(X_ref, X_query, k = 3, as = "sparse")
dim(C)
#> [1]  50 100

Each row holds the heat-kernel similarities from one query point to its 3 nearest matches in the reference set. This is the foundation for cross-modal retrieval, domain adaptation, and inter-subject alignment.

Normalizing for diffusion and random walks

Raw adjacency matrices are degree-imbalanced: high-degree nodes dominate. normalize_adjacency() row-normalizes to produce a Markov transition matrix:

A_raw  <- adjacency(ng)
A_norm <- normalize_adjacency(A_raw)

# Confirm rows sum to 1 (stochastic matrix)
range(Matrix::rowSums(A_norm))
#> [1] 0.5762124 1.3103125

Row-stochastic matrices are needed for random walk analysis, compute_diffusion_kernel(), and compute_diffusion_map().

Quick-reference: objects and constructors

Class Constructor(s) What it holds
neighbor_graph graph_weights(), weighted_knn(), neighbor_graph() igraph + construction params
class_graph class_graph() Extends neighbor_graph with class structure
nnsearcher nnsearcher() Fast kNN index for repeated queries
nn_search find_nn(), find_nn_among(), find_nn_between() Raw search result (indices + distances)
